Navigation
PAN
|
ORBIT
|
ZOOM
|
Press middle mouse
button(wheel) and mouse drag
|
Press right mouse
button and mouse drag
|
Scroll the wheel
|
Keyboard shortcuts perform toggles.
 Transparency(X-ray): keyboard 'x'
Makes the selected mesh model appear transparent.
|
|
 Display grid: keyboard 'g'
Show or hide ground grid and ruler grid
Default View
X-Y plane grid only
|
Click G
Ruler grid with 1cm space
|
Click G once more
Non grid
|
|
|
|
|
|
 Mesh display mode change: keyboard ‘e’
Change the selected mesh model display mode between color and skinning for PLY color model.
Default View for PLY color model
|
Skin view for PLY color model
|
|
|
|
|
 Shade Line mode : keyboard 'w'
Switch Shade/Shade Line mode of the selected mesh model on 3D Canvas
Default Shade View
|
Wireframe shade view
|
|
|
|
|
 Multi View change: keyboard ‘a’
Change view mode.
※ Each time the 'a' key is clicked, the view mode changes.
|
|

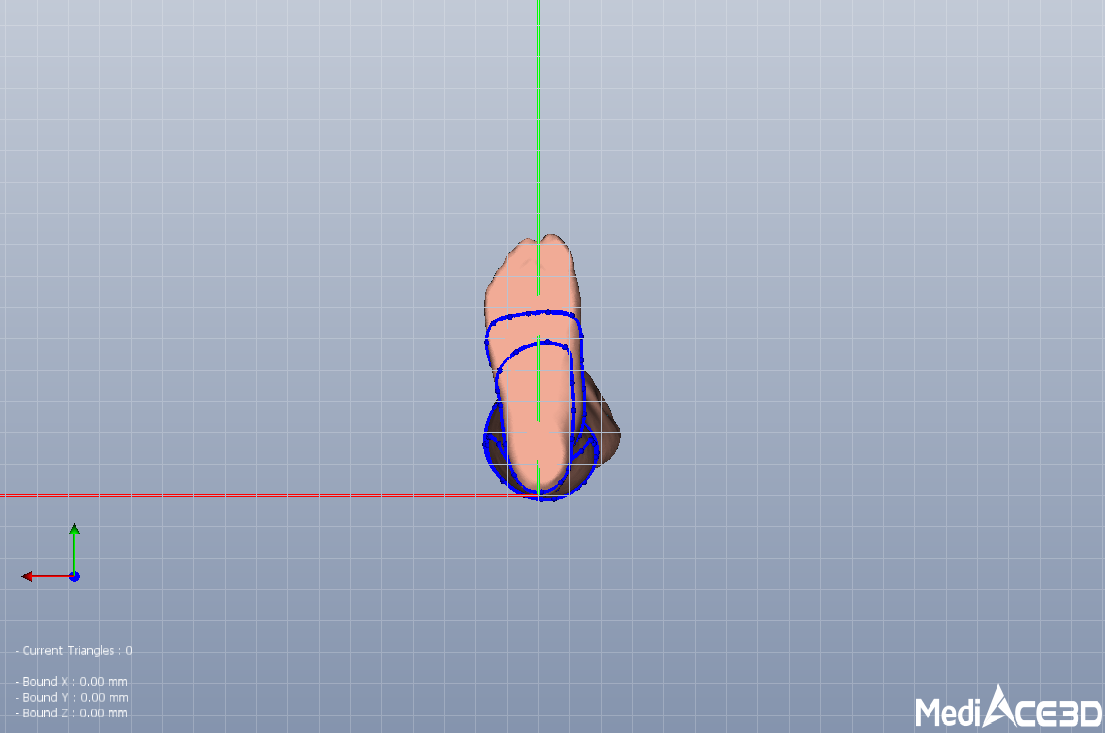

 Display View Position: keyboard '1,2,3,4,5,6,7'
Change view position.
1. Axonometric View
|
2. Front View
|
3. Left View
|
4. Rear View
|
5. Right View
|
6. Top View
|
|
|
|
|
