Cut face with closed curve that created with Draw function.
 Mesh Model
Select the target mesh model.
Create a trimmed model in the selected model.
|
|
 Select Face Trim/Reset
Select target face(s) or reset selection(s).
The selected area turns grey.
Select Face (Trim): Select the faces to trim.
Select Face (Unselect): Select the faces to cancel from the selected faces.
Reset: Cancels the select face execution.
To run it again, you have to run the select face again.
|
|

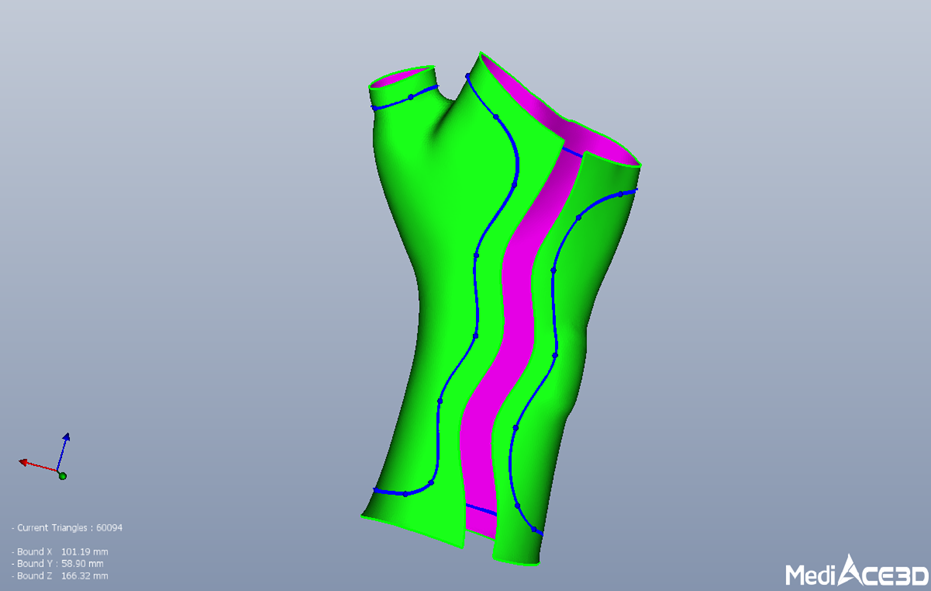

 Run
Cut the selected face and create a new mesh model of the remaining faces.
The curves from the original model are copied to the trimmed model except the trim edge curves.

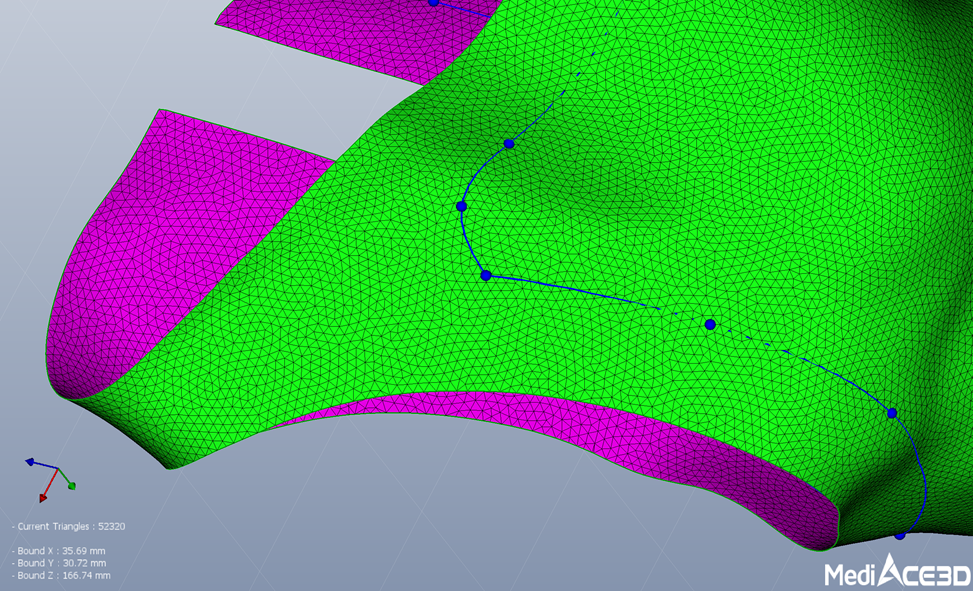

※ The trim operation does automatically re-mesh to arrange a trimmed edge after trimming.
|
|
 Reverse Run
Creates a new mesh model of faces cut from the selected face.
The curves from the original model are copied to the trimmed model except the trim edge curves.
※ The trim operation does automatically re-mesh to arrange a trimmed edge after trimming.
|
|
The trimmed mesh model is created by adding subscripts such as _M0, _M1, etc. to the selected model name and displayed in the project tree.
