MediACE3D V1
User's Manual

Shortcut Keys


Navigation

PAN
ORBIT
ZOOM
Press middle mouse
button(wheel) and mouse drag
Press right mouse
button and mouse drag
Scroll the wheel

Keyboard shortcuts perform toggles.

1

Transparency(X-ray): keyboard 'x'

Makes the selected mesh model appear transparent.

Default View
X-ray view
2

Display grid: keyboard 'g'

Show or hide ground grid and ruler grid

Default View

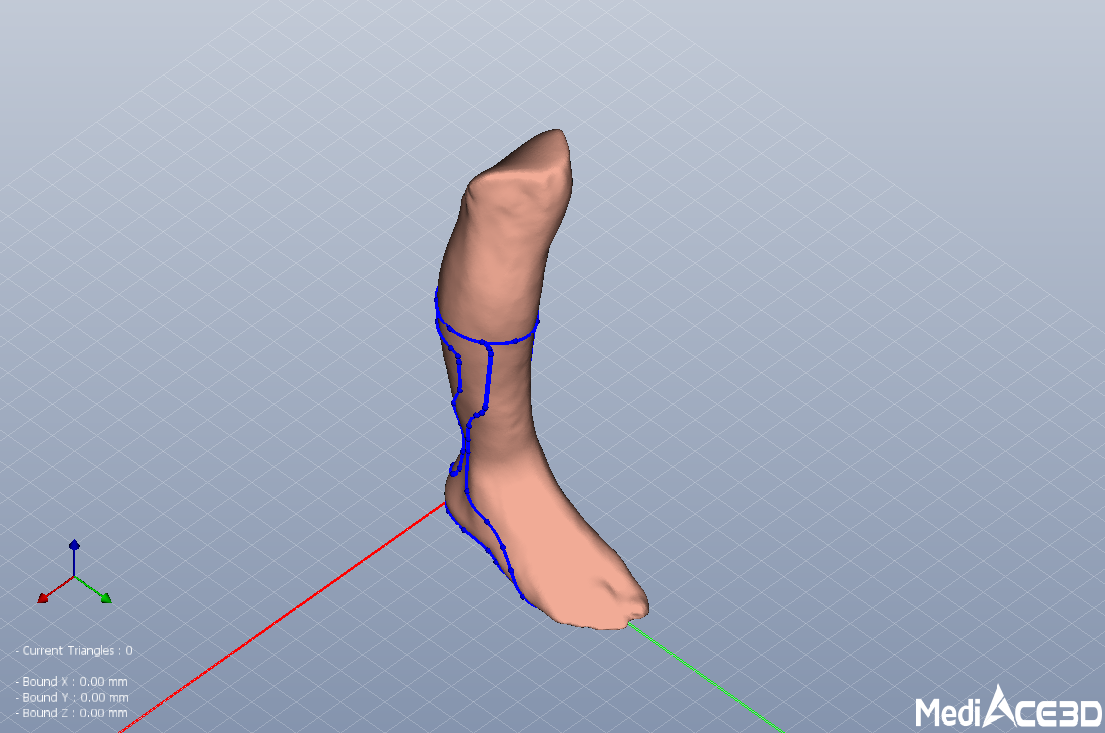

X-Y plane grid only
Click G
Ruler grid with 1cm space
Click G once more
Non grid

3

Mesh display mode change: keyboard ‘e’

Change the selected mesh model display mode between color and skinning for PLY color model.

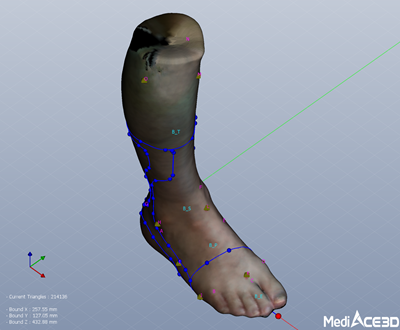

Default View for PLY color model

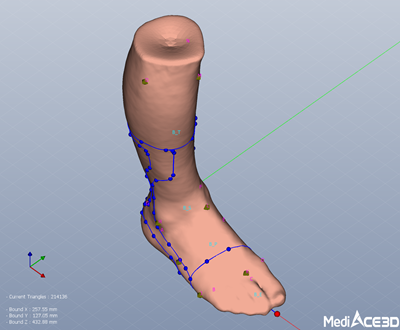

Skin view for PLY color model
4

Shade Line mode : keyboard 'w'

Switch Shade/Shade Line mode of the selected mesh model on 3D Canvas

Default Shade View

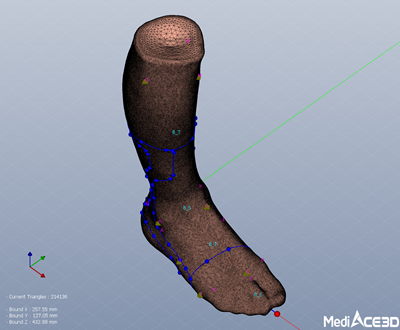

Wireframe shade view
5

Multi View change: keyboard ‘a’

Change view mode.

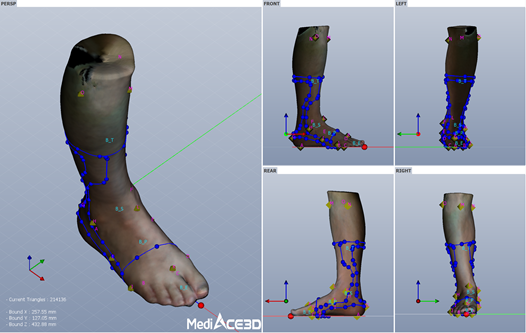

Each time the 'a' key is clicked, the view mode changes.
6

Display View Position: keyboard '1,2,3,4,5,6,7'

Change view position.

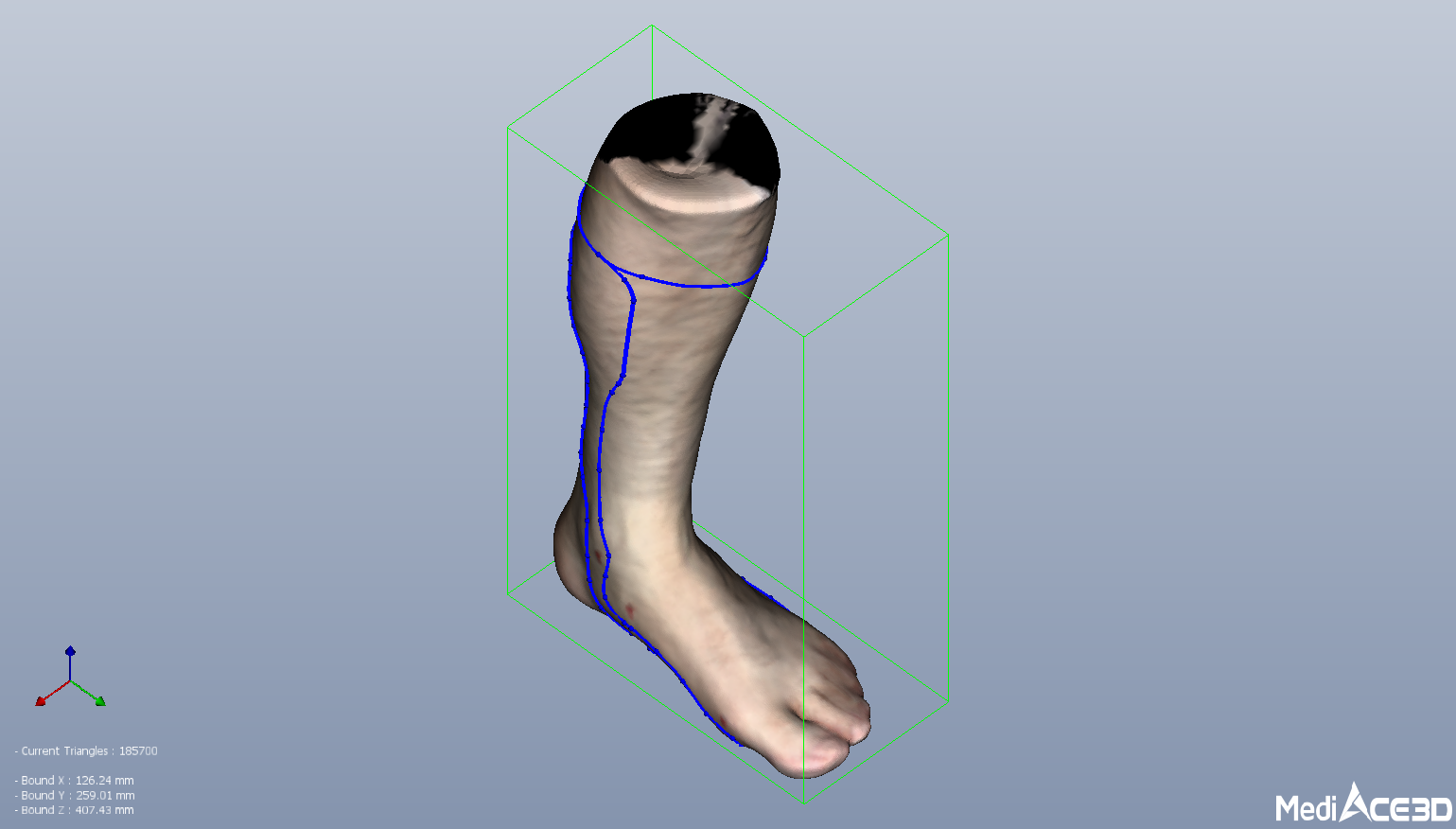

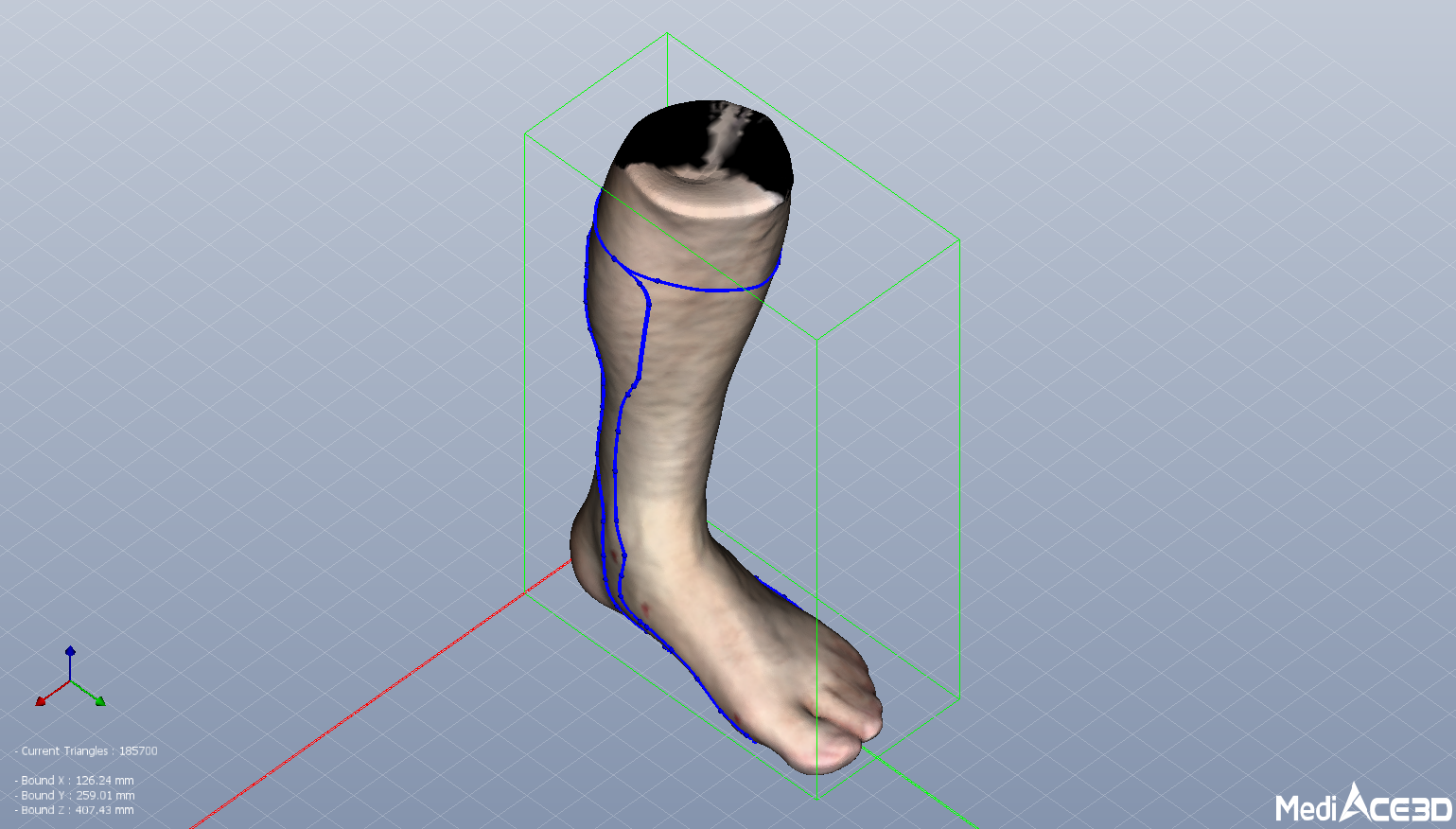

1. Axonometric View

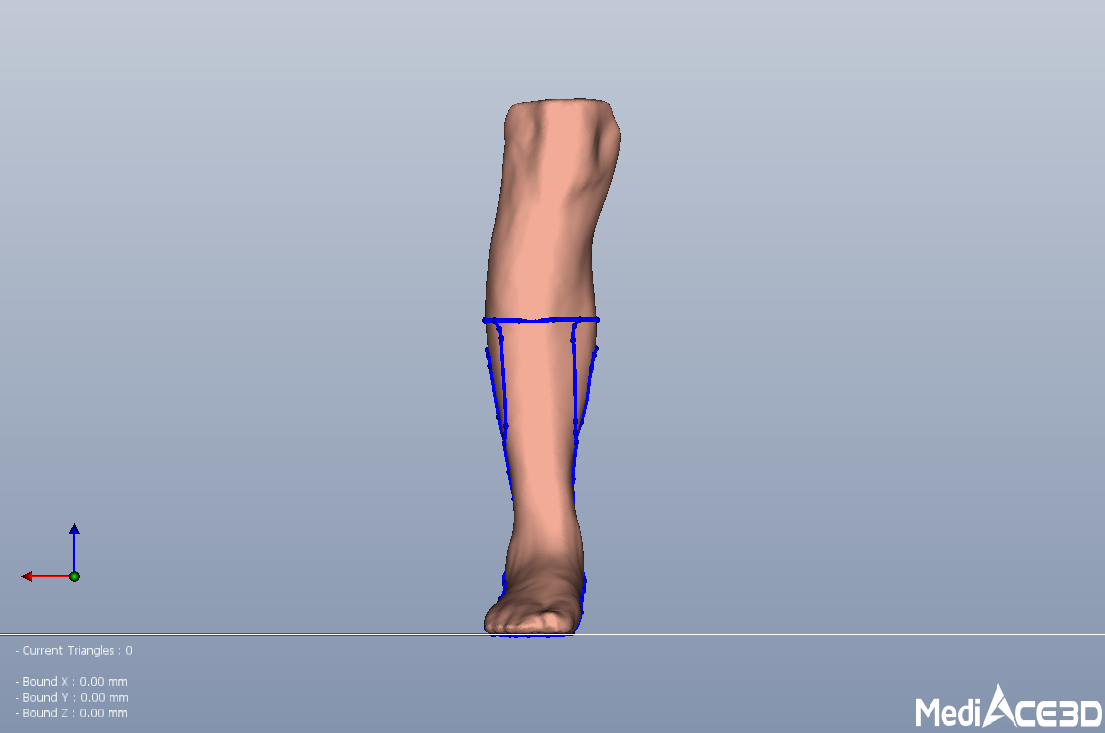

2. Front View

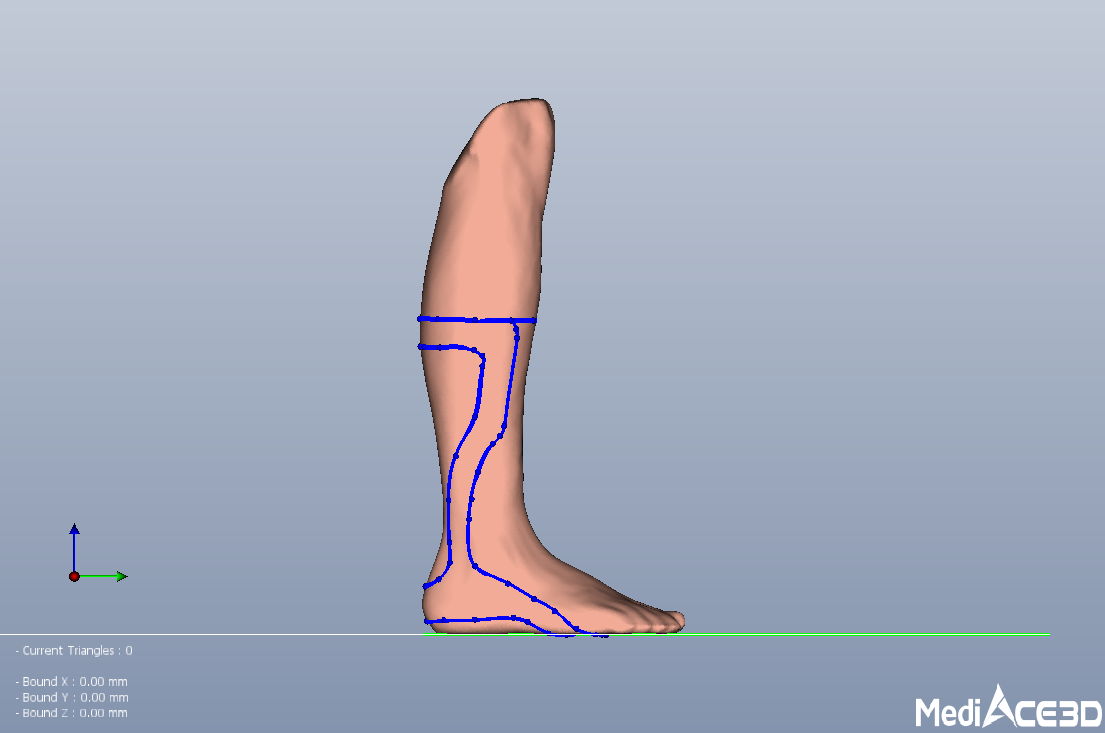

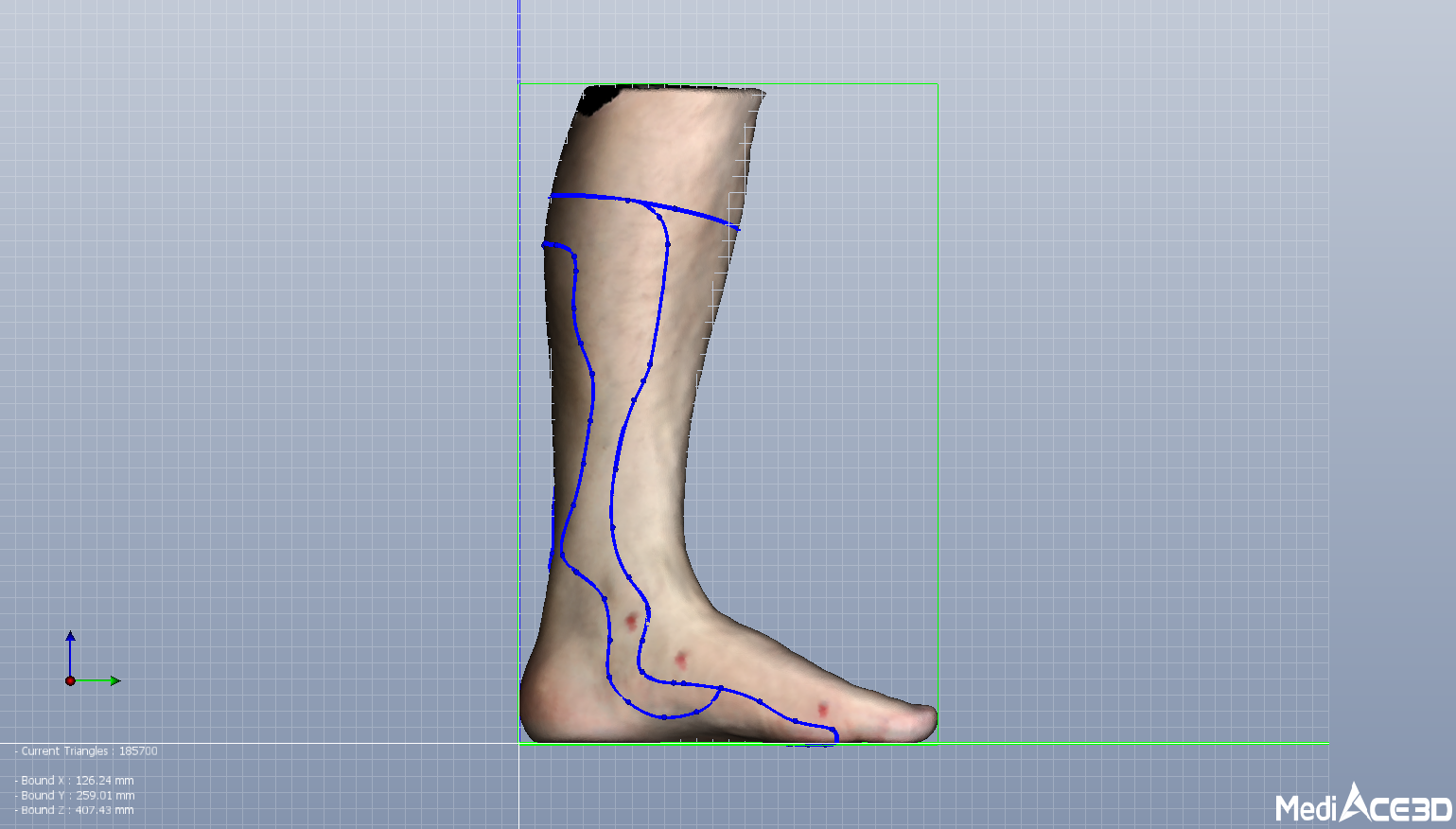

3. Left View
4. Rear View

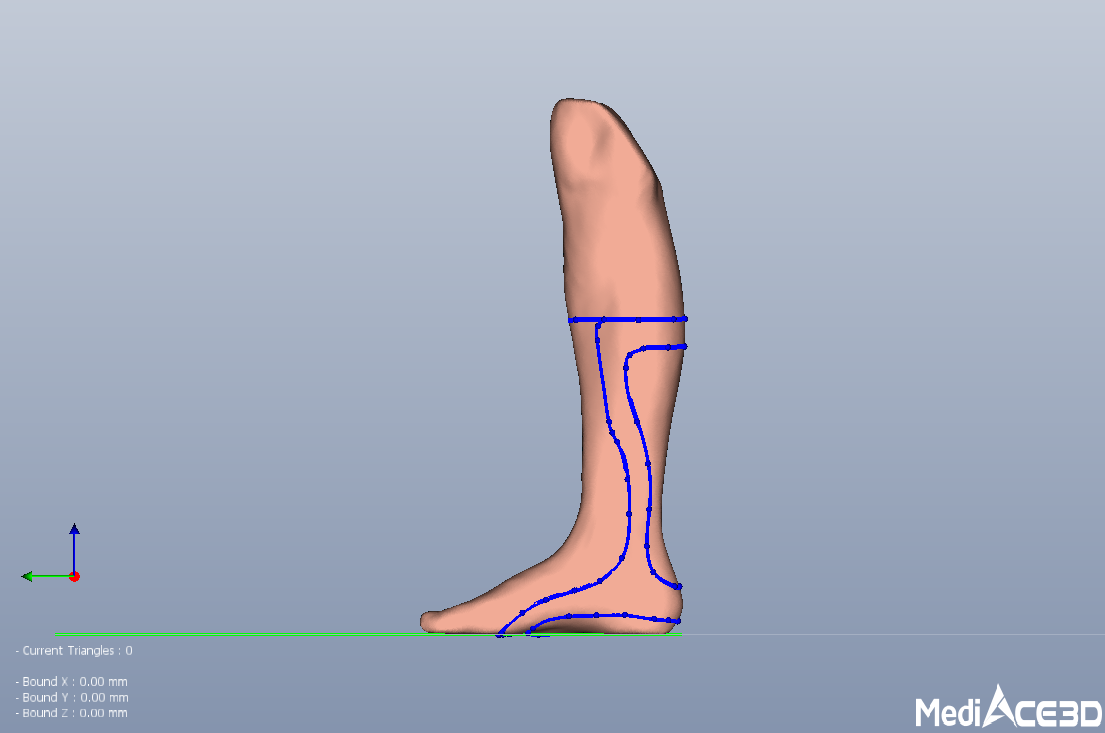

5. Right View

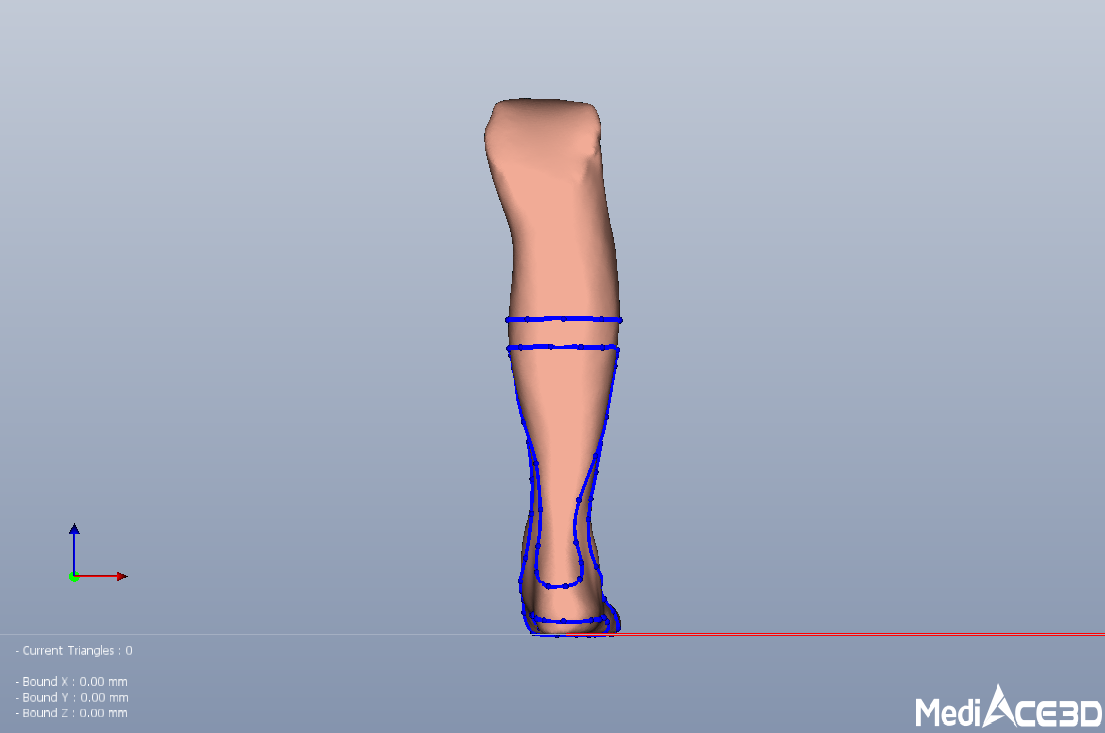

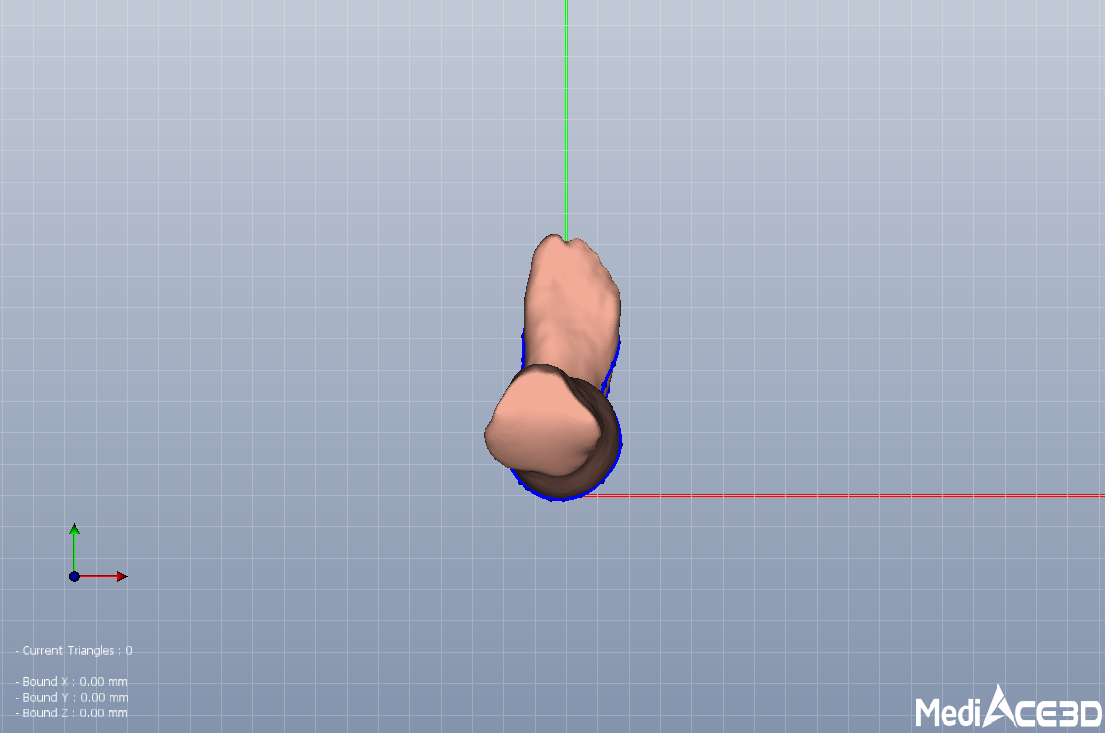

6. Top View

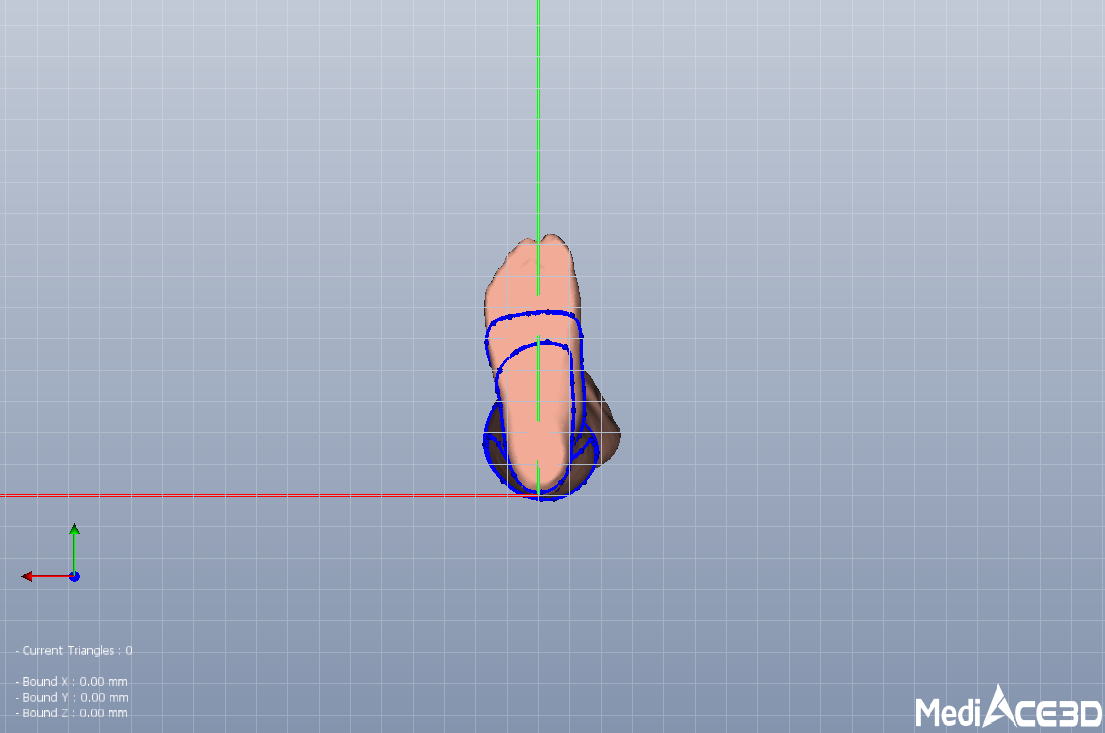

7. Bottom View
