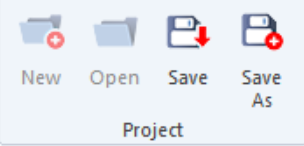

 ProjectCreate, save or open project.
Save as a copied project with a different project name.
※ Project information includes model information, curve information, and skeleton information.
|
|
 Import/ExportImport PLY/STL data from 3D Scanner.
Export STL data for 3D Printing.
Capture and save the screen image.
|
|

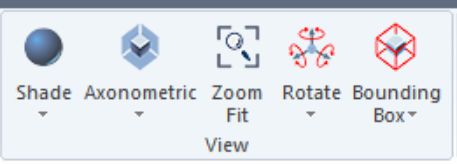

 ViewUser can change view of graphic window.
|
|

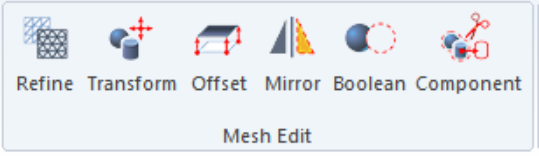

 Mesh EditPrepare or edit the scanned mesh model for the orthosis design.
※ Modified mesh data is overwritten.
|
|

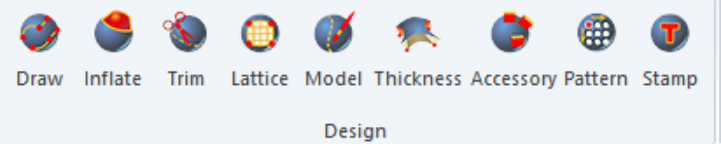

 DesignUse professional mesh edit features for orthosis design.
Draw curves on the surface and trimming the surfaces, create thicken mesh model and add orthosis specified parts.
※ Modified mesh data is copied.
|
|
 AnalysisCheck measurement value and cross-section of model.
|
|

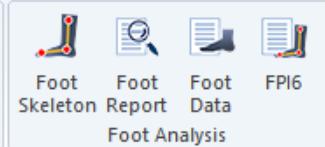

 Foot AnalysisThe foot skeleton is the basis for measurement analysis and orthosis design algorithms.
It is important to define the skeleton.
Generate a foot measurement index report.
|
|

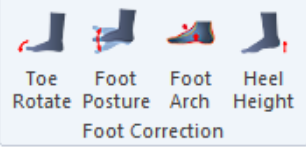

 Foot CorrectionCreate a foot correction dumy model for designing Solid AFO and Hinged AFO.
It is important to define the skeleton.
Apply foot posture correction.
Rectificate a foot arch.
Generate foot model with heel height for applying heel thickness of insole.
|
|

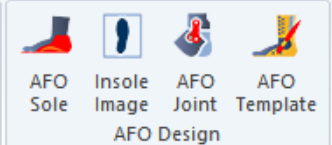

 AFO DesignDedicated features for designing AFO.
Create AFO Sole Dummy.
Create an Insole profile shell to match the shoe insole.
Apply joint model for Hinged AFO.
Reuse AFO template design.
|
|
 Insole DesignDedicated features for designing Insole.
Match an Insole profile shape to match the shoe insole.
Generate Insole Design Model.
|
|
 WHO DesignDedicated features for designing WHO.
It is important to define the skeleton.
Apply hand posture correction.
Reuse WHO template design.
|
|
