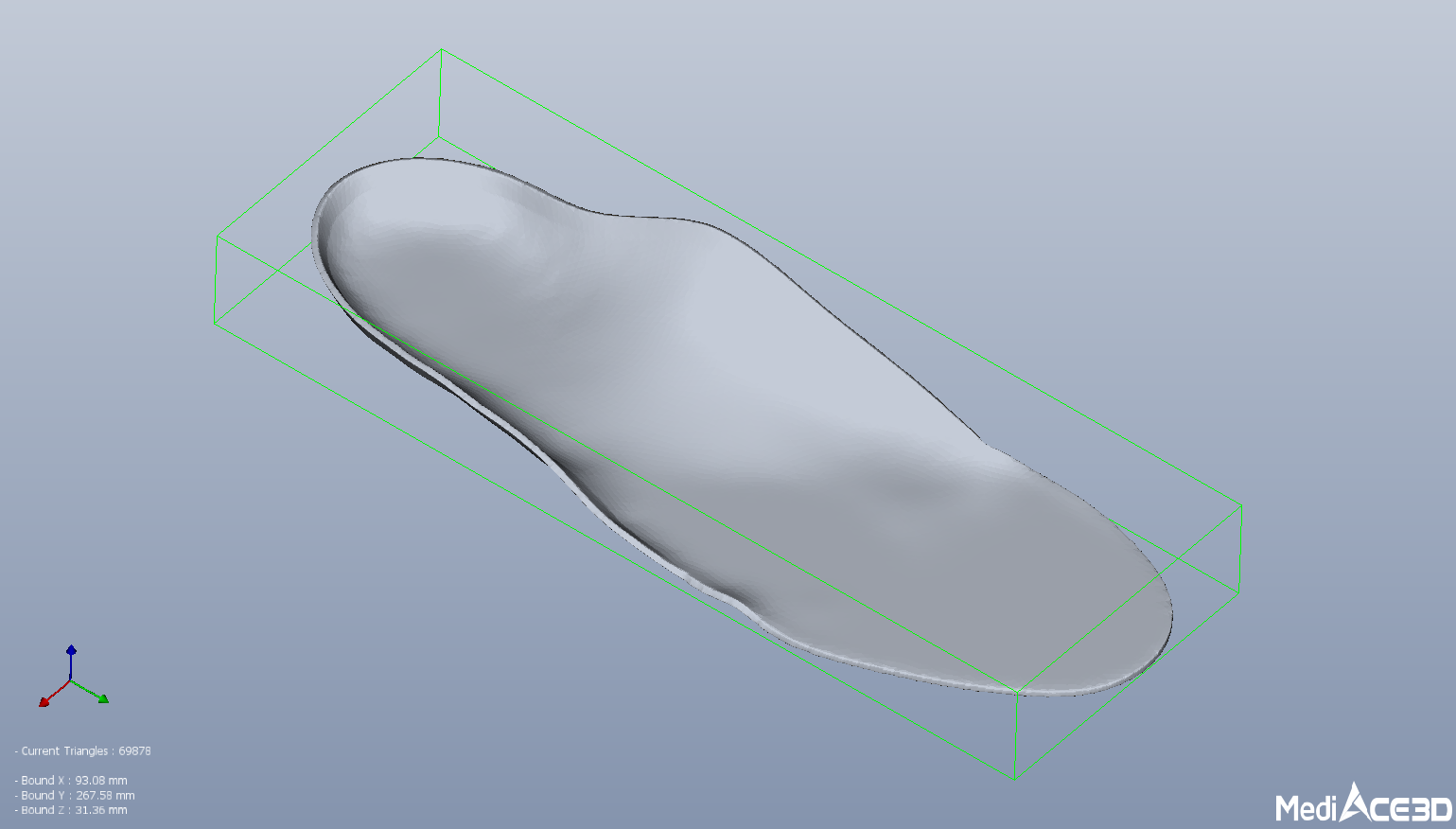

Insole Model


Create an insole model by applying a foot insole profile design.

Insole Model

1

Mesh Model

1. Mesh Model
Select a target foot mesh model that has the skeleton.

2

Load Profile

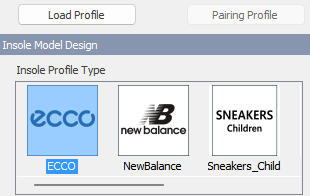

2. Load Profile
Load the insole design profile template appropriate for your shoe brand.
Insole design templates can be further defined and used by users in the administrator menu.
Shoe insoles of brands not included in the insole profile template can be custom-designed by loading the insole photo file and reused by registering it as a template.

Click the Load Profile button to load the default insole profile, then click the brand image to load the insole profile of the registered brand.

Clicking the Pairing Profile button synchronizes the insole profile parameter values ​​of one foot being worked on to the values ​​of the other foot at once.




3

Insole Type

3. Insole Type

Choose a type of insole shape.

4

Insole Thickness

4. Insole Thickness

Specify a thickness of the insole model.

5

Edit Insole Profile

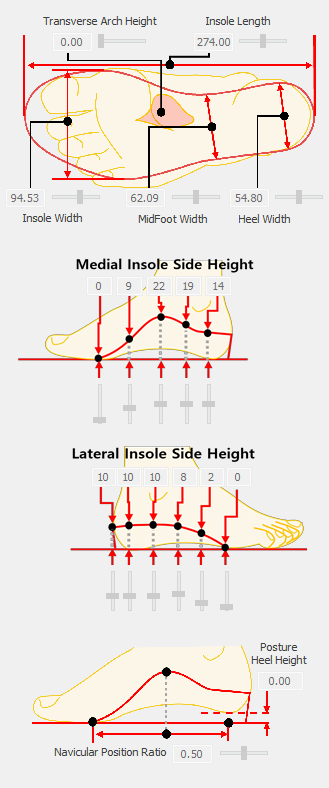

5. Edit Insole Profile
Adjust a value of the insole profile shape.

6

Move/Rotate

6. Move/Rotate
Adjust a position of the insole profile to fit the sole shape.

7

Create Model

Create an insole model.

The insole mesh model is created by adding subscripts such as _M0, _M1, etc. to project name and displayed in the project tree.
The insoles of both feet can be created simultaneously.
