Stamp

Engrave mesh model with characters. User can select intaglio and emboss.

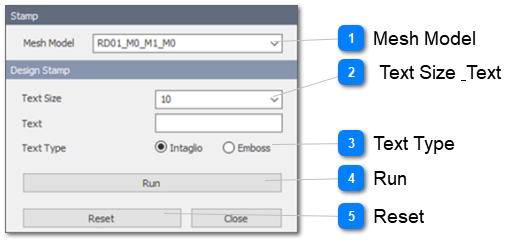

Stamp

1

Mesh Model

1. Mesh Model
Select the target mesh model.

2

Text Size & Text

2. Text Size & Text
Define font size of characters to be carved. (default value is 10)
Enter characters to be carved.

• Caution
- Must be entered without space(s).
- Special characters are available.
- It is recommended that the number of characters be less than 10 bytes. (Korean be less than 5 letters, alphanumeric be less than 9 letters)
- If the imprinted area of the curvature surface on the screen is not enough, you need to reduce the number of characters or reduce the size of the characters.

3

Text Type

3. Text Type
Define type of imprint. Intaglio or Emboss.

4

Run

Transform the target mesh model into a meshed model with imprint characters.

- User must click the location on the mesh model to set the position of the imprint before clicking the ‘Run’.
- The point of mouse click to define engraving position is the lower-left starting point of the characters.
- User can move to another position by clicking a new location.

5

Reset

Return the modified mesh model to its pre-work state before close the operation panel. (Undo feature)
Note that once you close the operation panel, you will not be able to return the generated model to its previous state.
