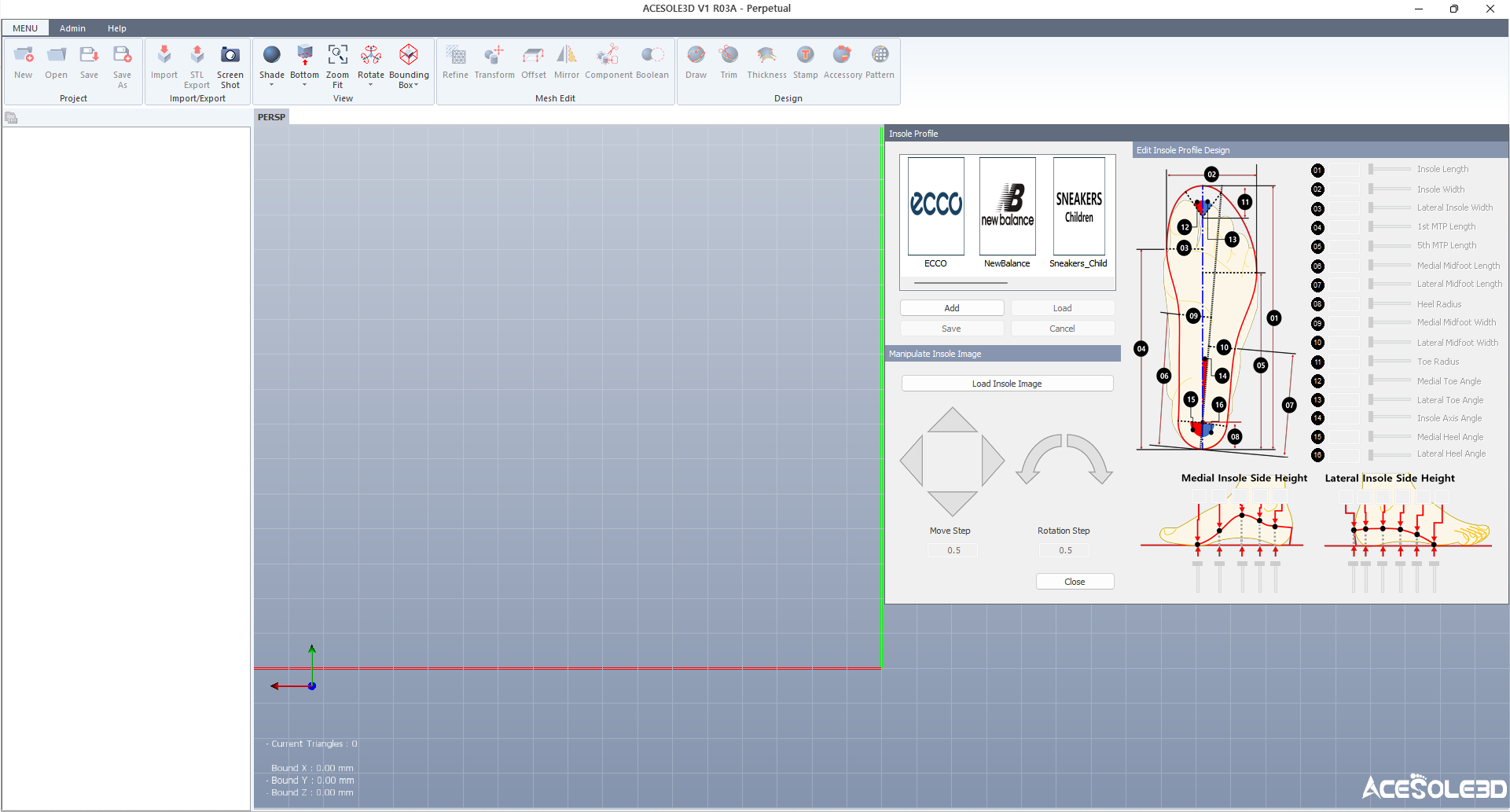

Template - Create Insole Profile


You can use the insole photo image of the shoe to define the insole profile that fits the shoe brand and apply the insole profile design that fits the shoe size.

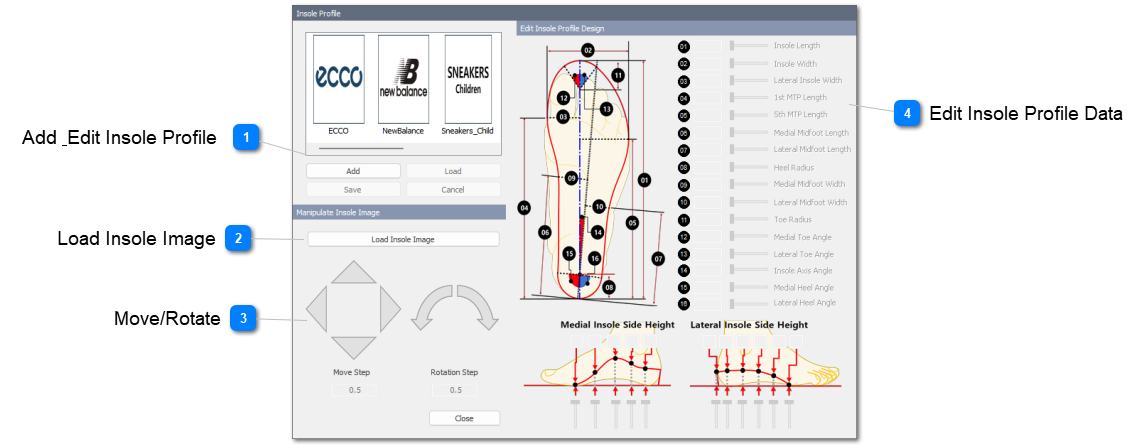

Template - Create Insole Profile
1

Add & Edit Insole Profile

1. Add & Edit Insole Profile

The user can further define and use the insole profile design shape for various shoe insole products.
 - Add & Save
 - Load & Modify

You can modify the user-defined insole profile designs.
 - Select a user-defined insole profile from library.
 - User can execute additional jobs with the right mouse click.

• Rename : Change name of selected insole profile.
• Delete : Delete selected insole profile.
• Upload : Change representative image of insole prodile.

Default system templates can not be edited.

2

Load Insole Image

2. Load Insole Image
Load the shoe's insole photo file taken on A4 or A3 size paper.

Open the insole photo file

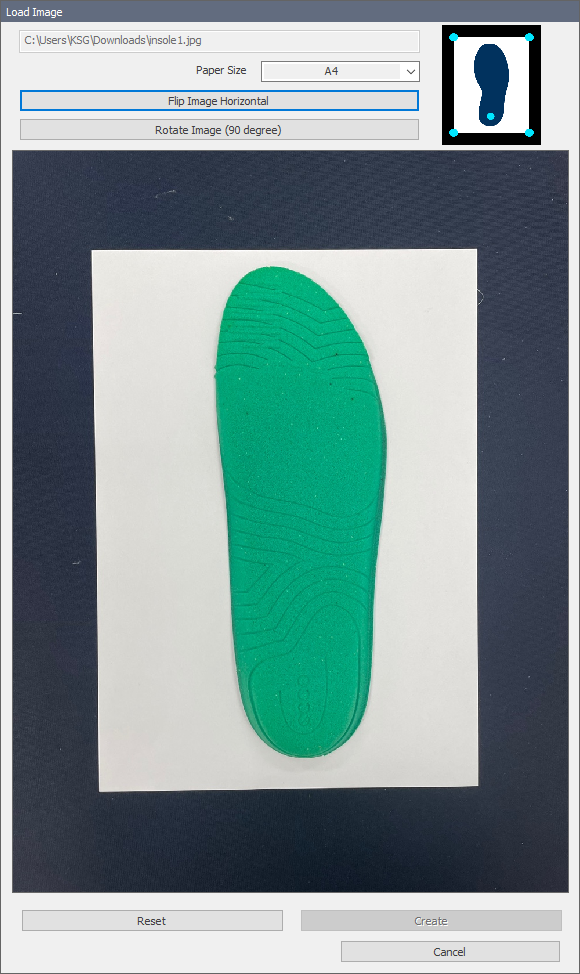

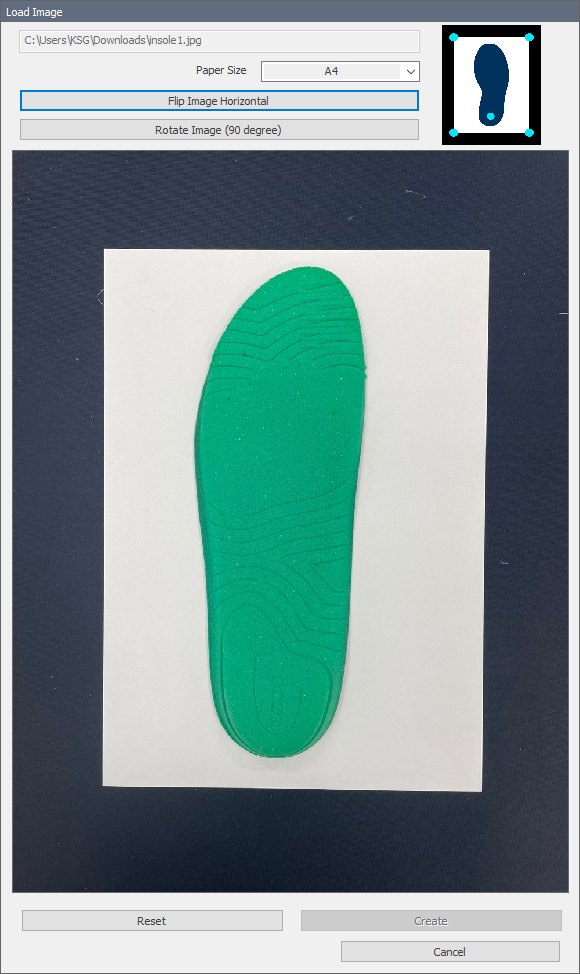

Set the left and right feet with left-right flip.

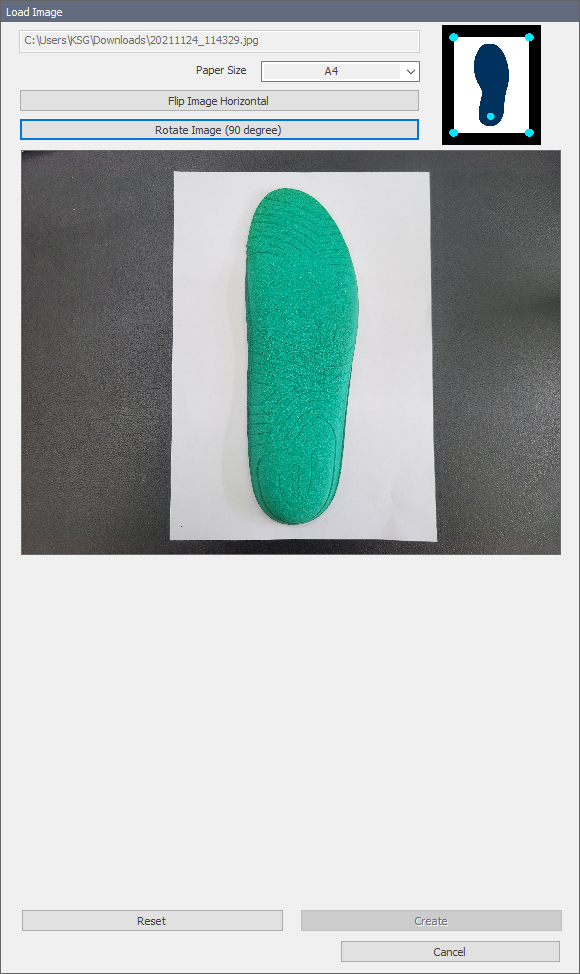

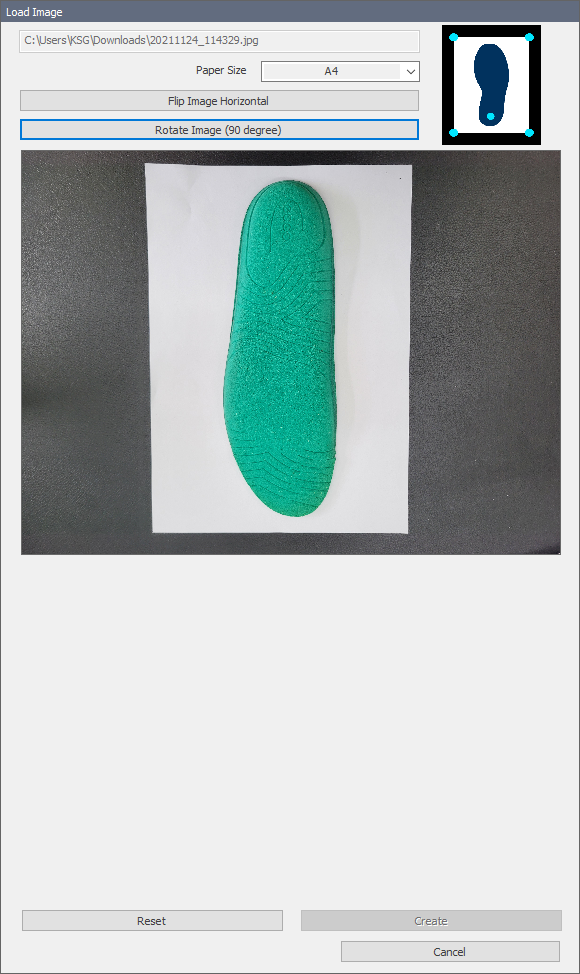

Set the toe and heel position with image rotation.


* The toe position of the insole should always be upward.

Specify the four corner points of the paper and the heel center point of the insole photo.


3

Move/Rotate

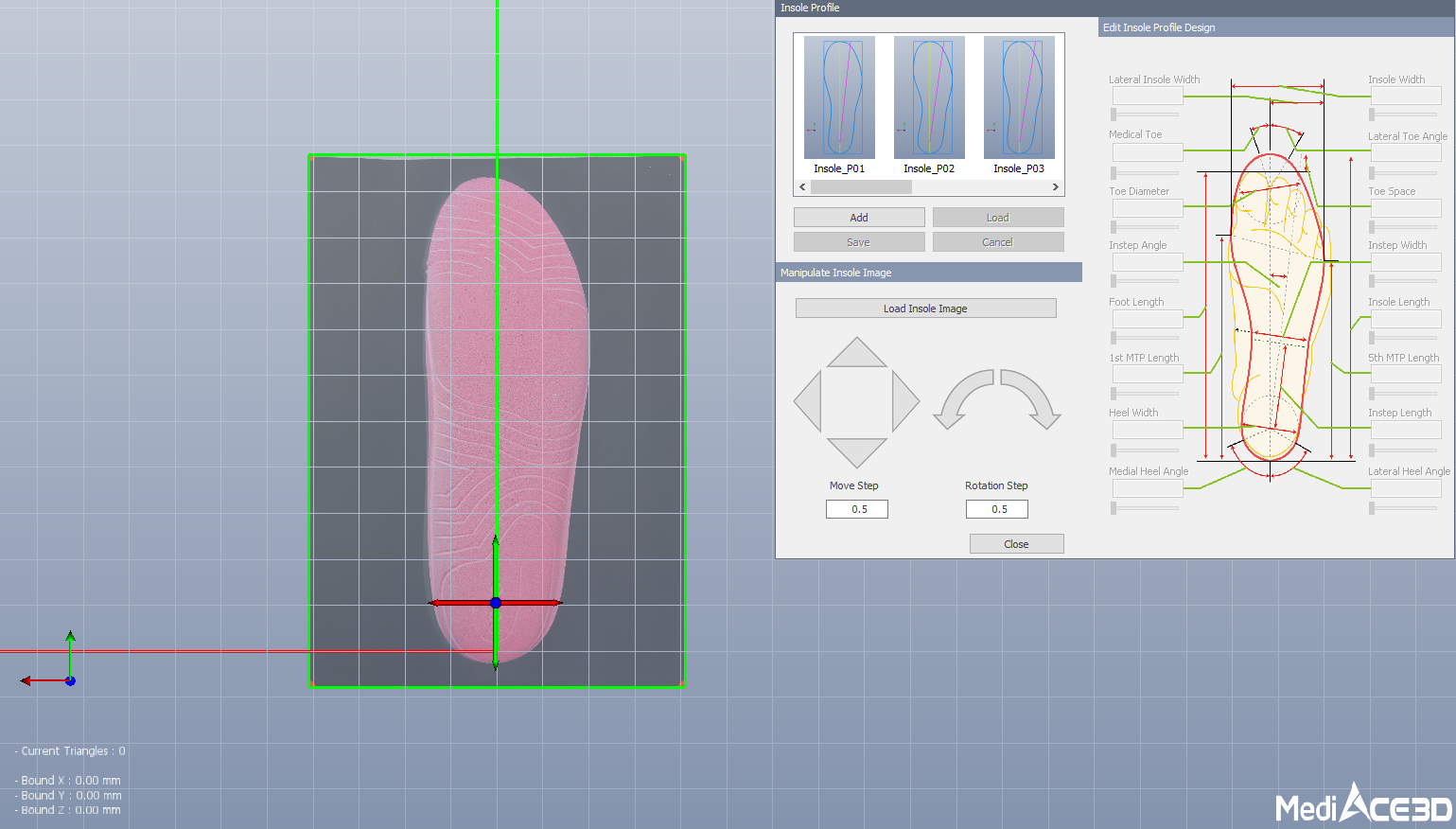

3. Move/Rotate
Adjust a position of the sole profile to fit the foot size.

4

Edit Insole Profile Data


4. Edit Insole Profile Data

You can define the exact insole profile by adjusting the design parameters of the insole profile shape.
