AFO Template

Apply an AFO (Ankle Foot Orthosis) template design curves to a foot mesh model.

AFO Template

1

Mesh Model

1. Mesh Model

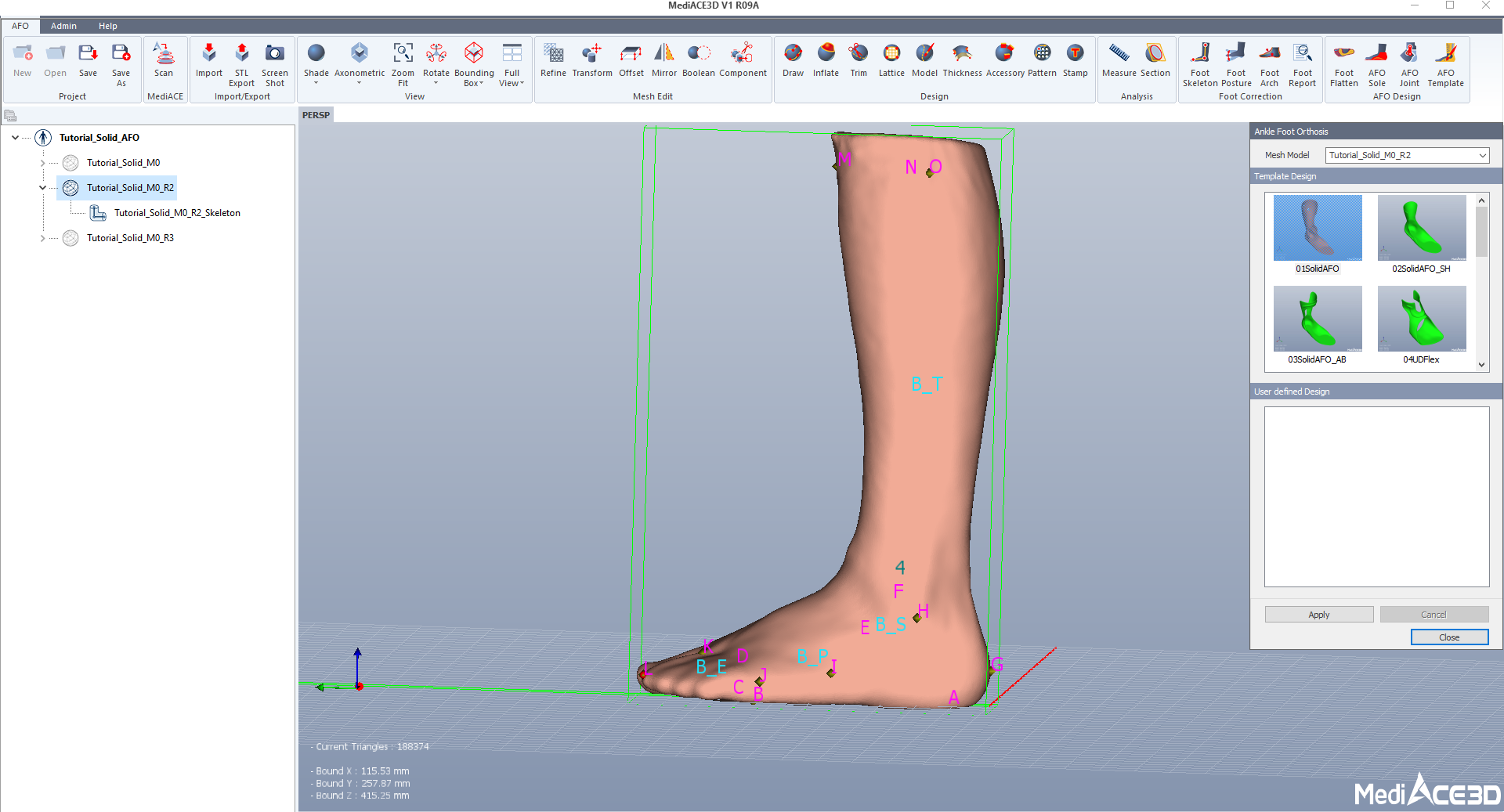

Select a target foot mesh model that has the skeleton.

2

Select Template Design

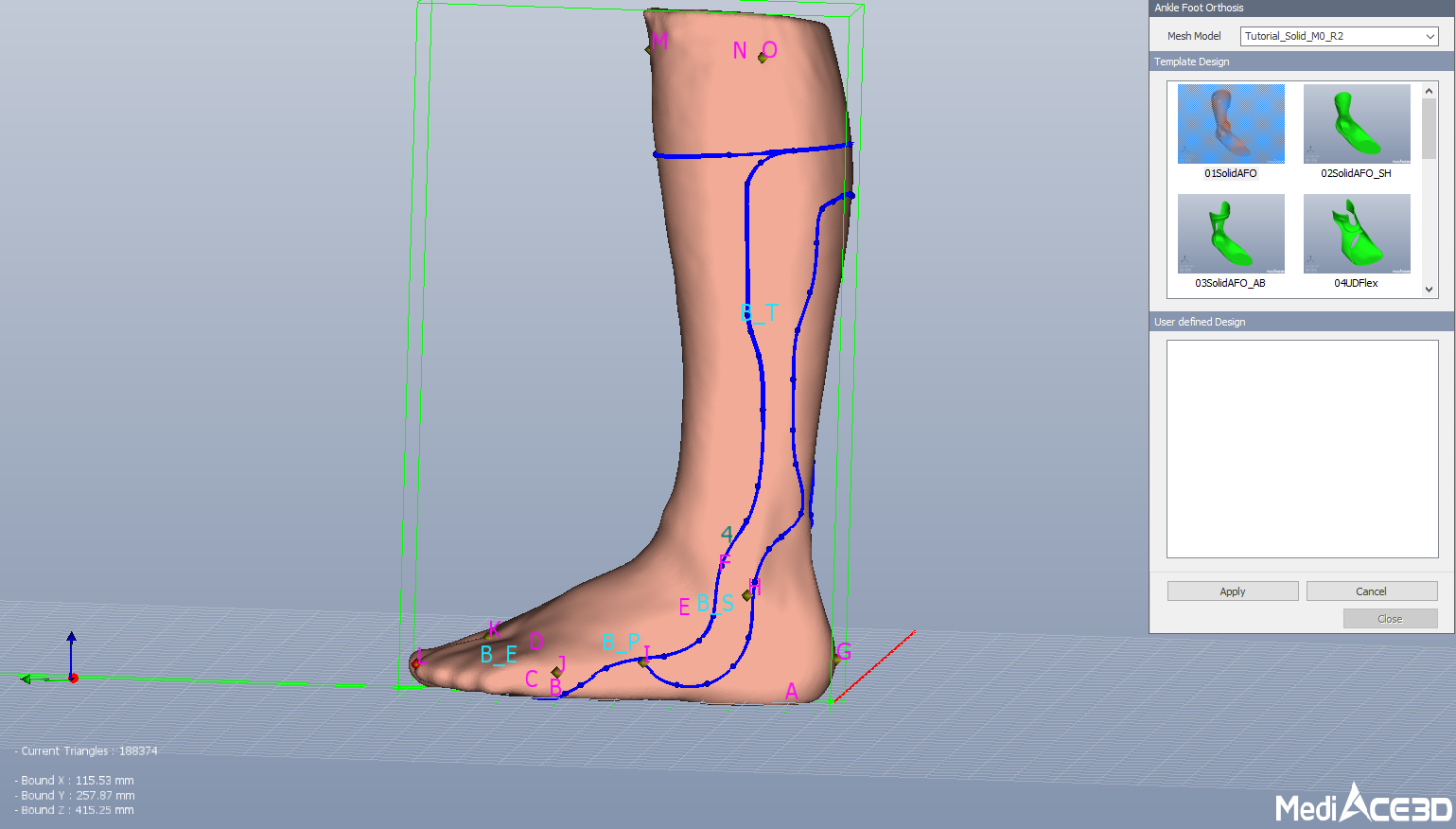

Select a template design model to apply and preview the template design curve


3

Select User-defined Design


Pre-registered user-defined template designs can be displayed and selected.

4

Apply

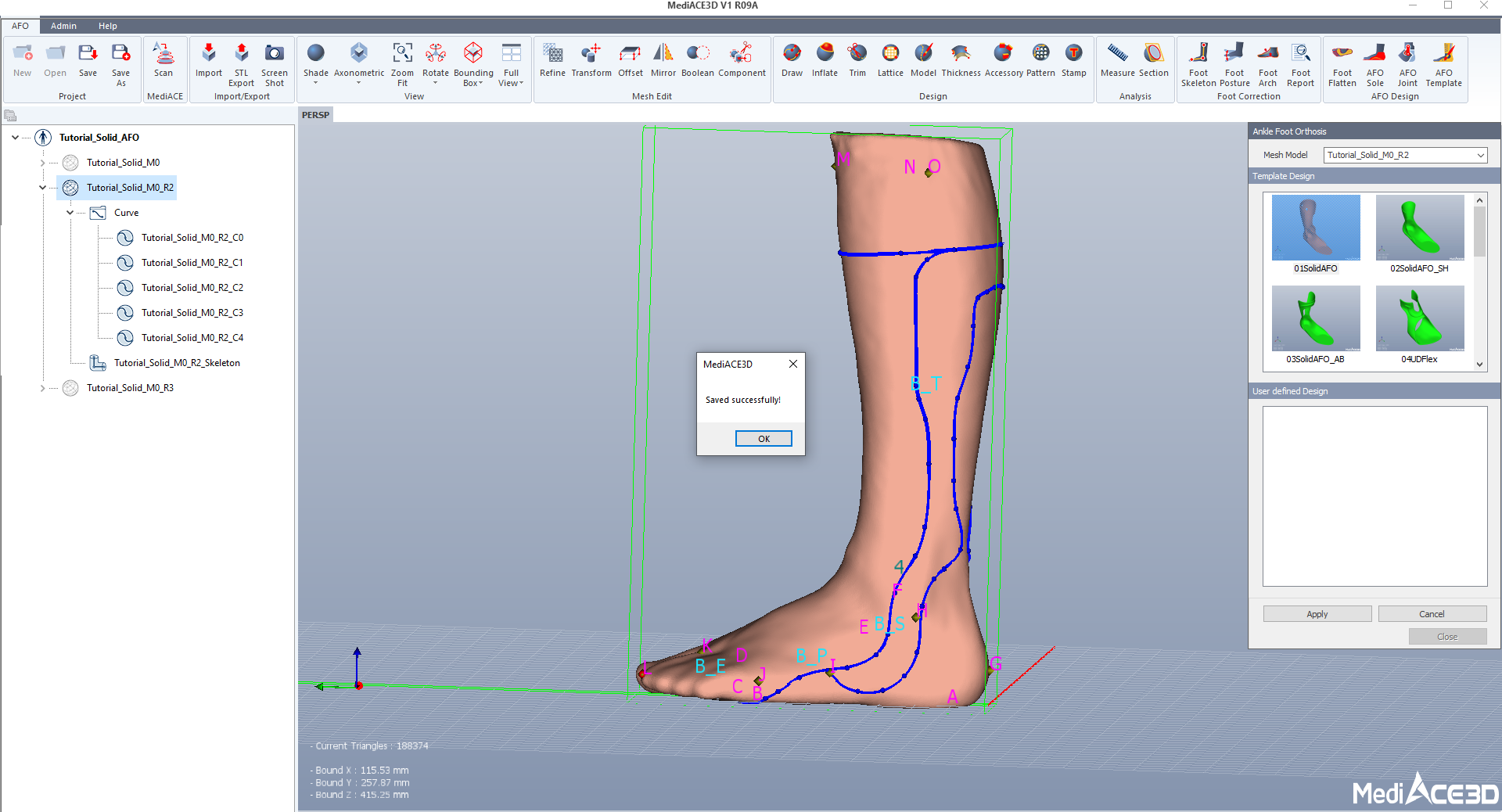

Apply the selected template design, create and save design curves of the selected foot model.
Add or edit curves with the Draw function.


5

Cancel

Remove and cancel the applied template design curves.
