Double copy a mesh model, split it into two or more models, or merge multiple mesh models into one mesh model
 Select Mesh Model

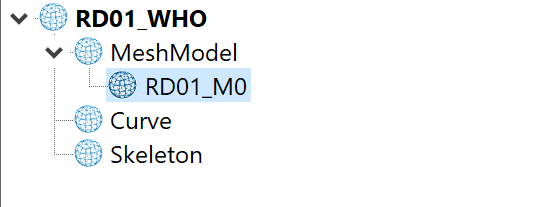

Select mesh model.
|
|
 Copy Double copy a mesh model.

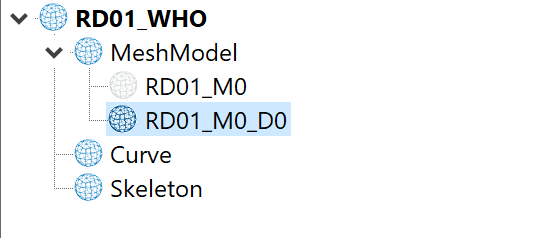

The copied mesh model is created by adding subscripts such as D0, D1, etc. to the selected model name and displayed in the project tree.
|
|

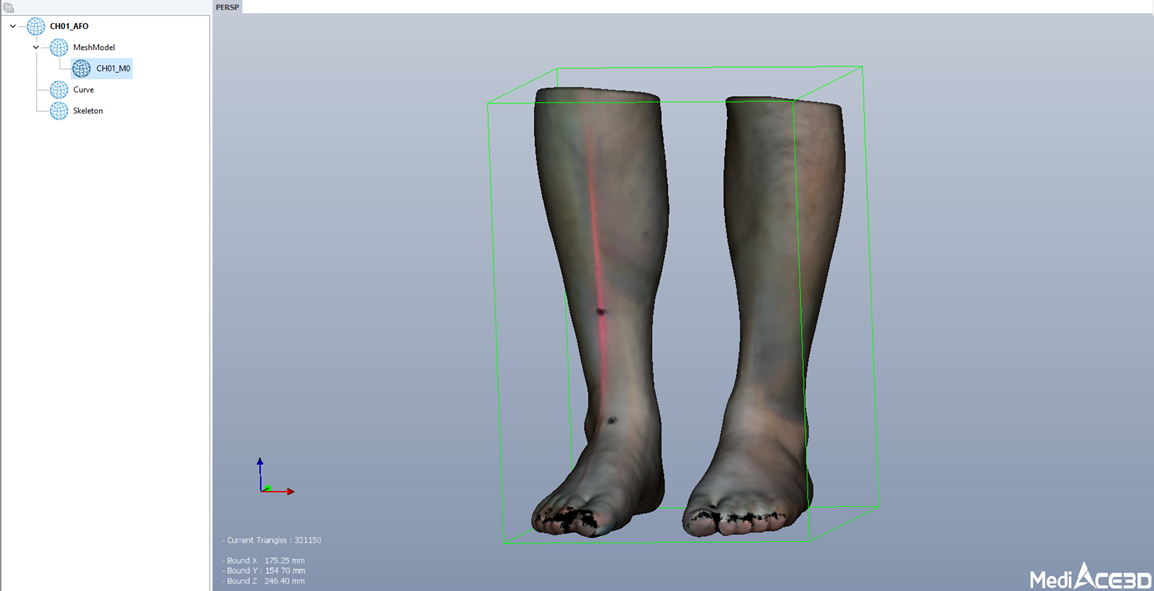

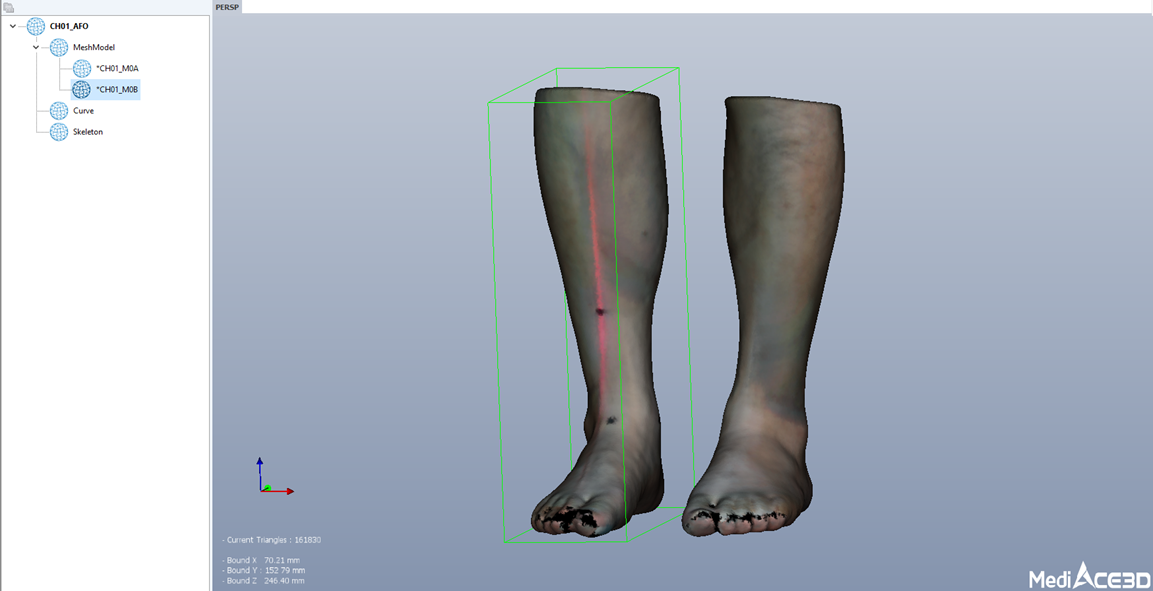

 SplitSplit one separated mesh model into two or more mesh models.

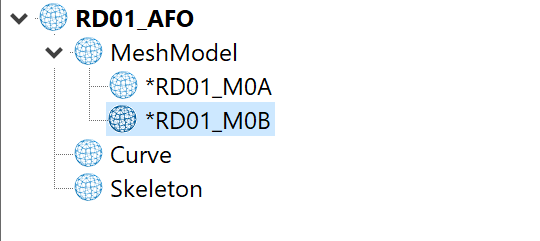

The model name of split models is added with subscripts A, B, etc. at the end of the selected model name.
|
|
 Combine

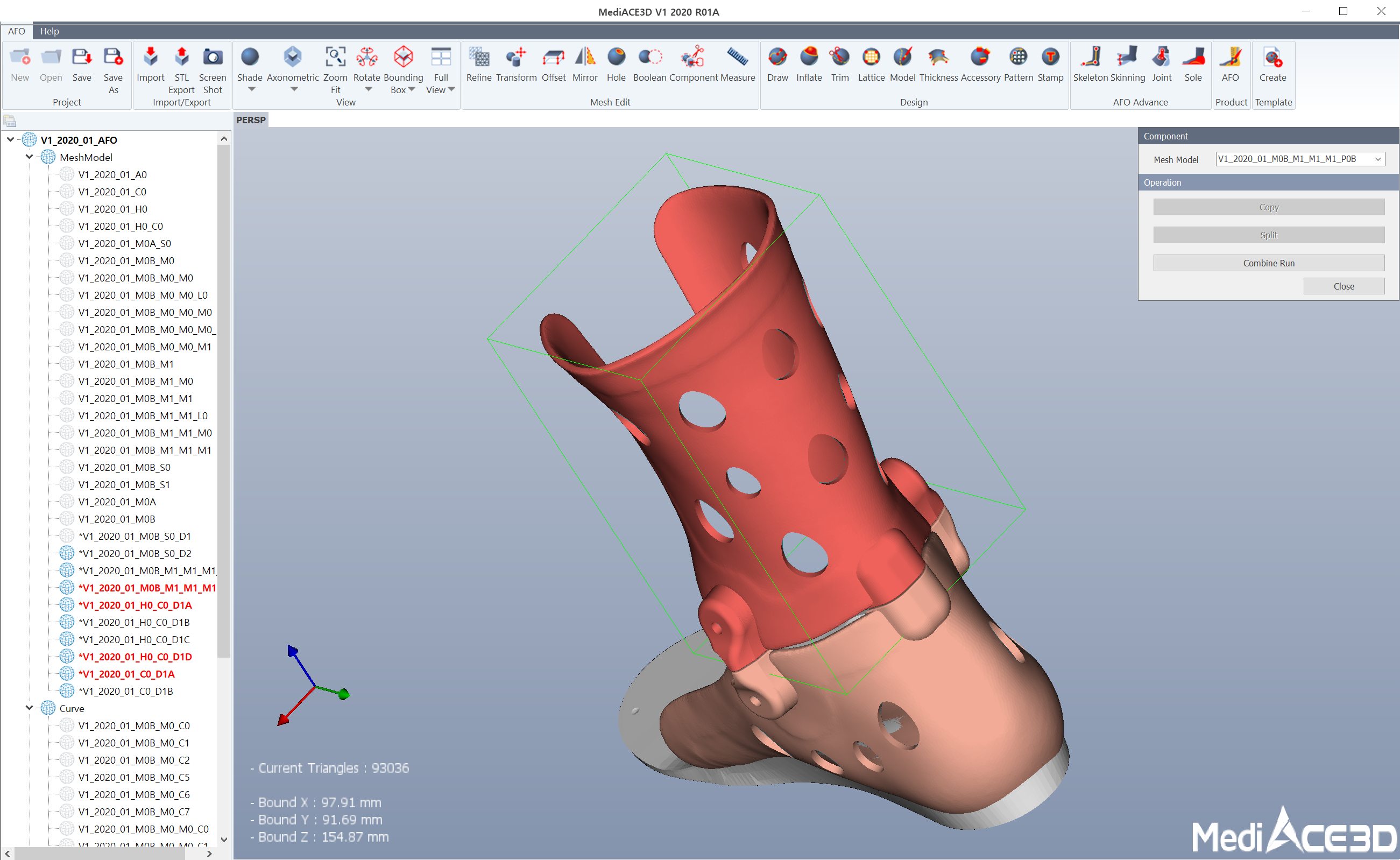

Combine multiple mesh models into one mesh model
It is mainly used as one model to export STL file for 3D printing.
Selected Combine target models are displayed in red in the Mesh Model list in the project tree.
The combined mesh model name is created with the first selected model name.
|
|
