Boolean

Unify or intersect or subtract between two mesh models.

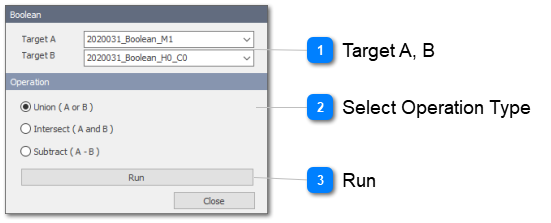

Boolean

1

Target A, B

1. Target A, B


Select Mesh Models.


2

Select Operation Type

2. Select Operation Type

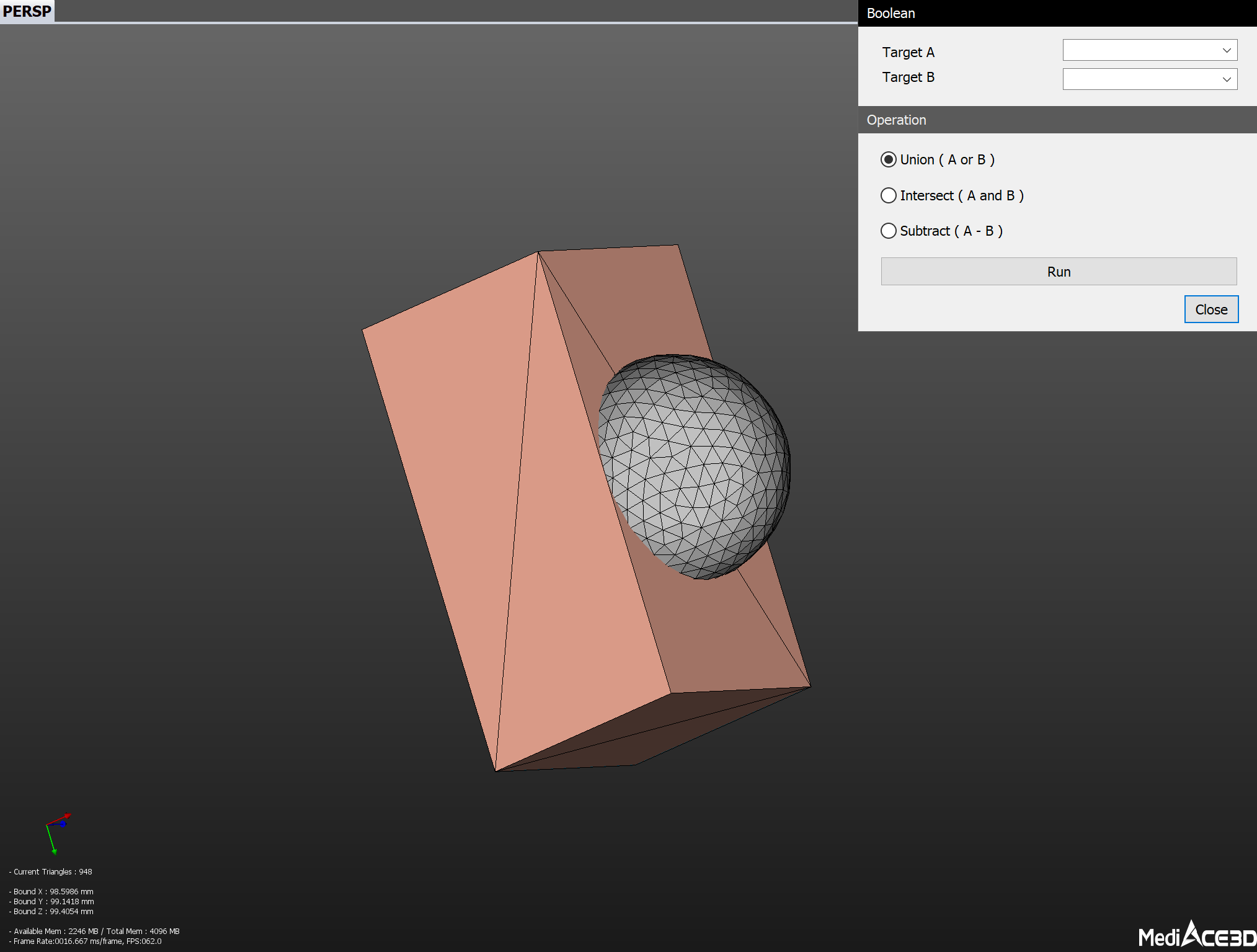

  • Union : Unify two mesh models.

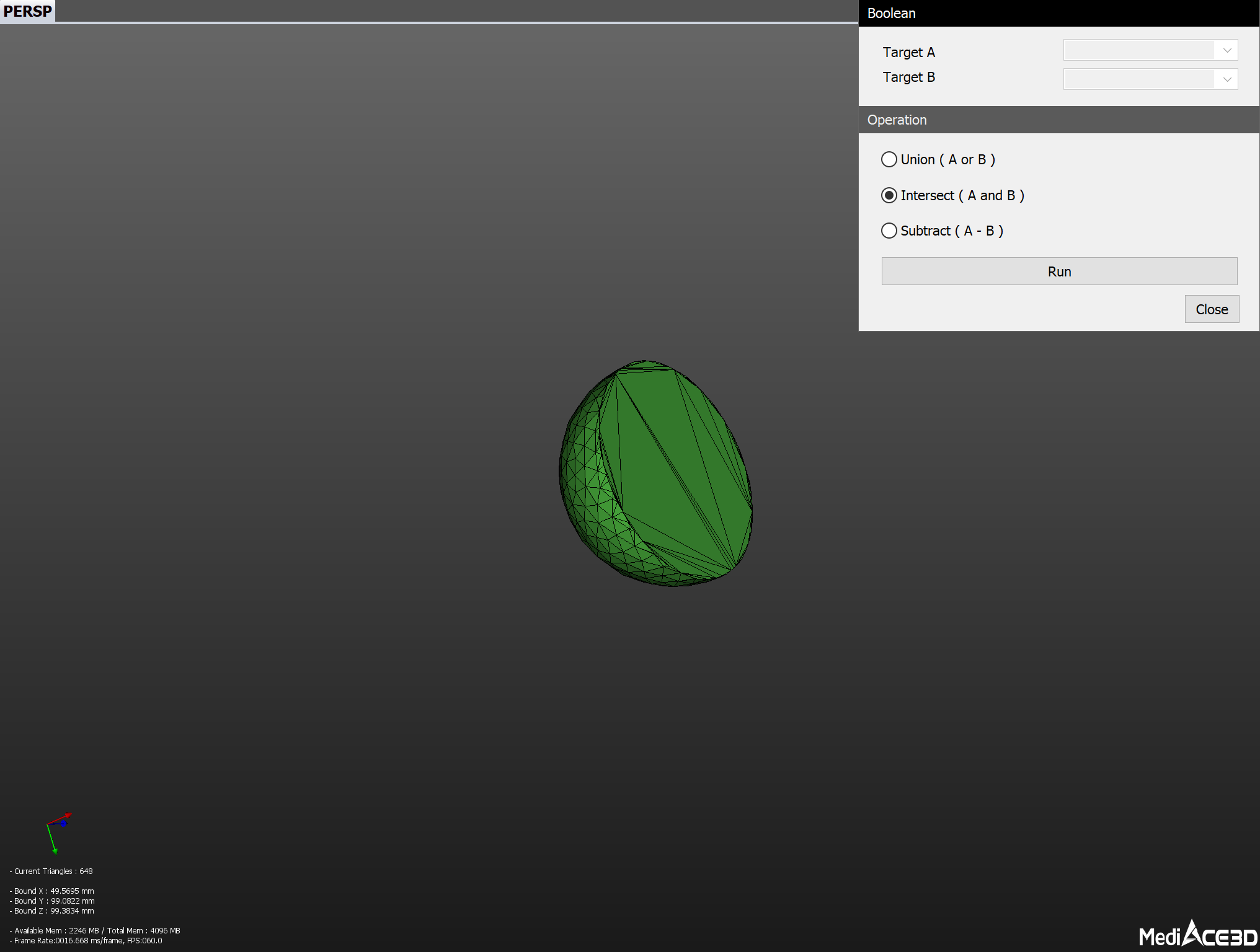

  • Intersect : Remain common part of two mesh models.

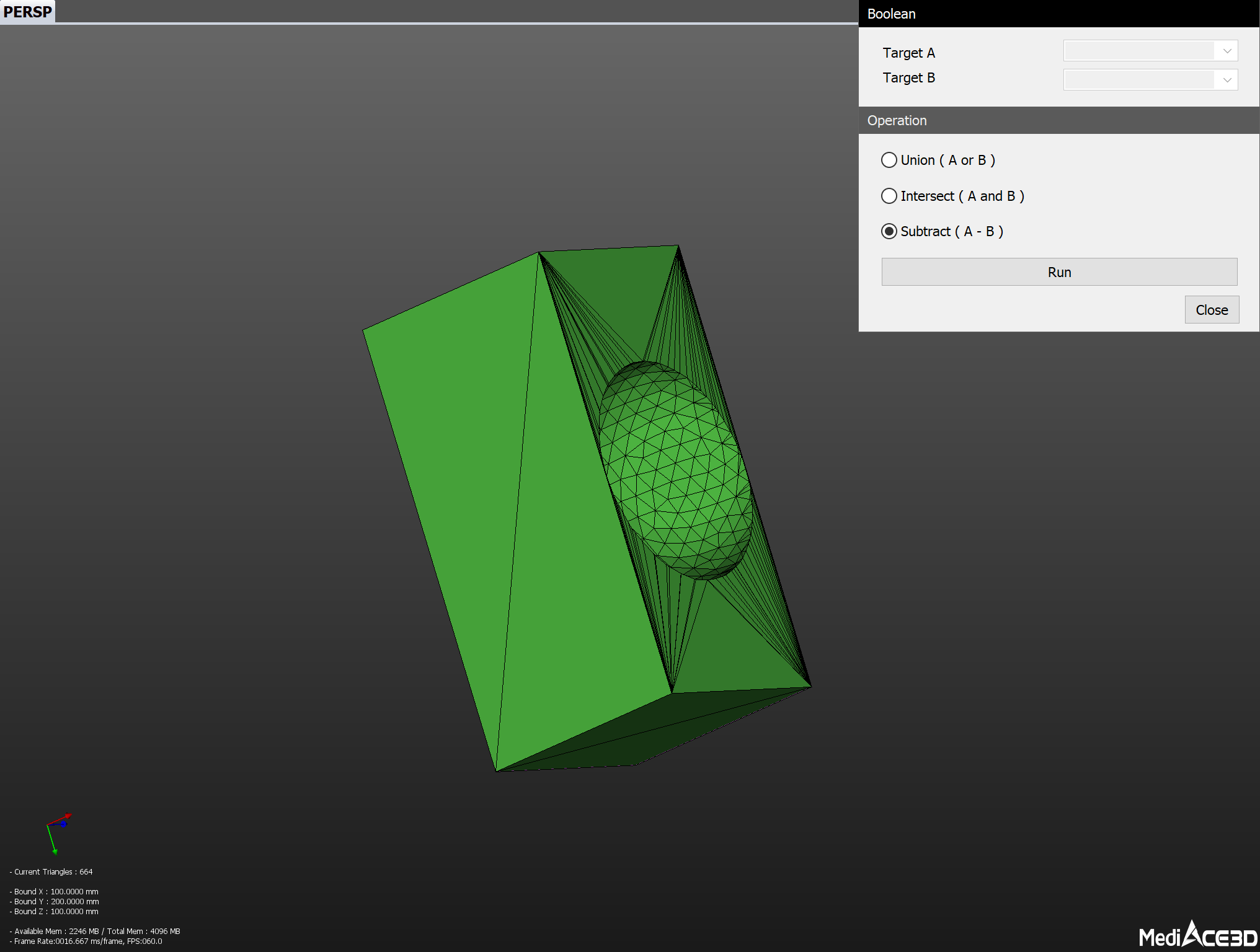

  • Subtract : Remove common part from the first mesh model.

3

Run

Proceed with the selected operation and save the result mesh model as a new mesh model.
