Mirror

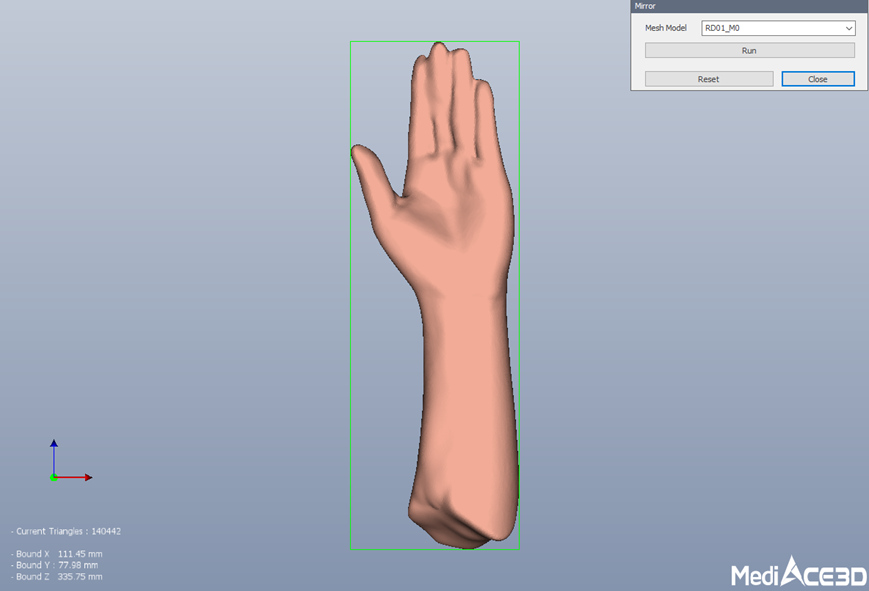

Invert the mesh model based on the YZ plane.

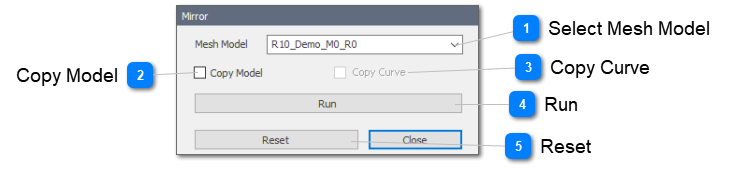

Mirror

1

Select Mesh Model

1. Select Mesh Model
 Select target mesh model.

2

Copy Model

2. Copy Model
When creating a new mirror model, check the Copy Model option.

3

Copy Curve

3. Copy Curve
Check whether to copy curves included in the selected model.

4

Run

 Proceed operation.

5

Reset

Return mesh model to pre-operation state.
