Offset

Deforms selected mesh model based on distance.
You can prepare the appropriate gap between the skin and the orthosis model.

※ In order to create a thickness model with a distance gap in the inflated model or the trimmed model, it is recommended to execute the offset function first.

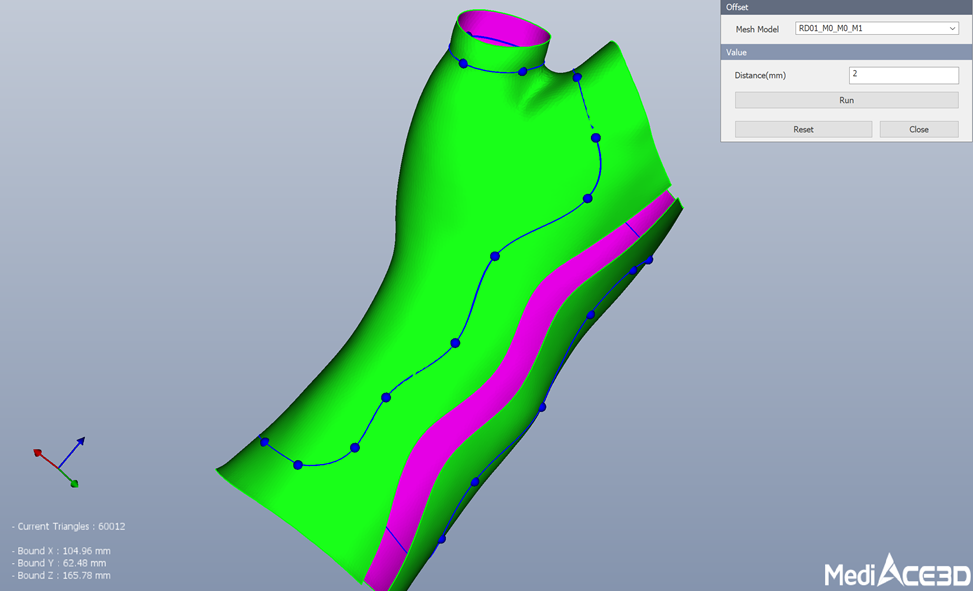

※ When the target model is offset, the curve information included in the target model is also offset.

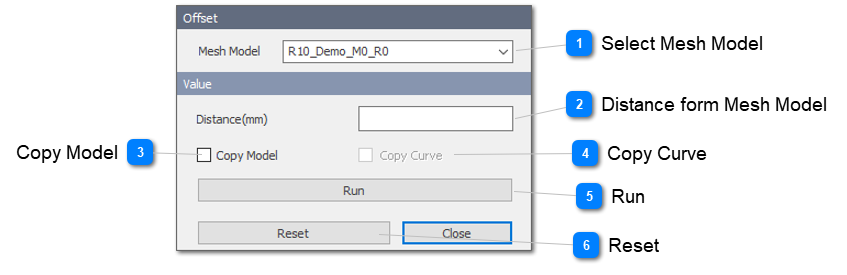

Offset

1

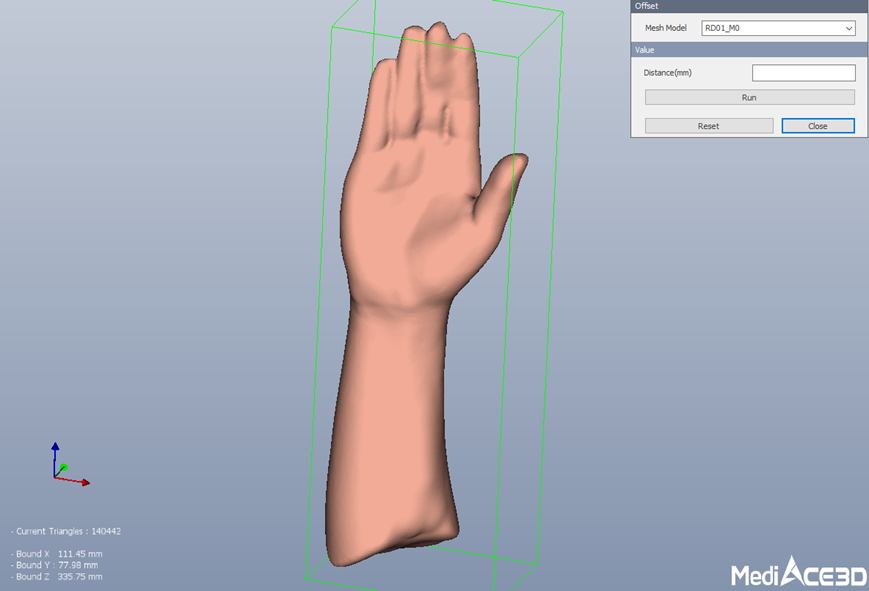

Select Mesh Model

1. Select Mesh Model
Select Mesh Model.

2

Distance form Mesh Model

2. Distance form Mesh Model

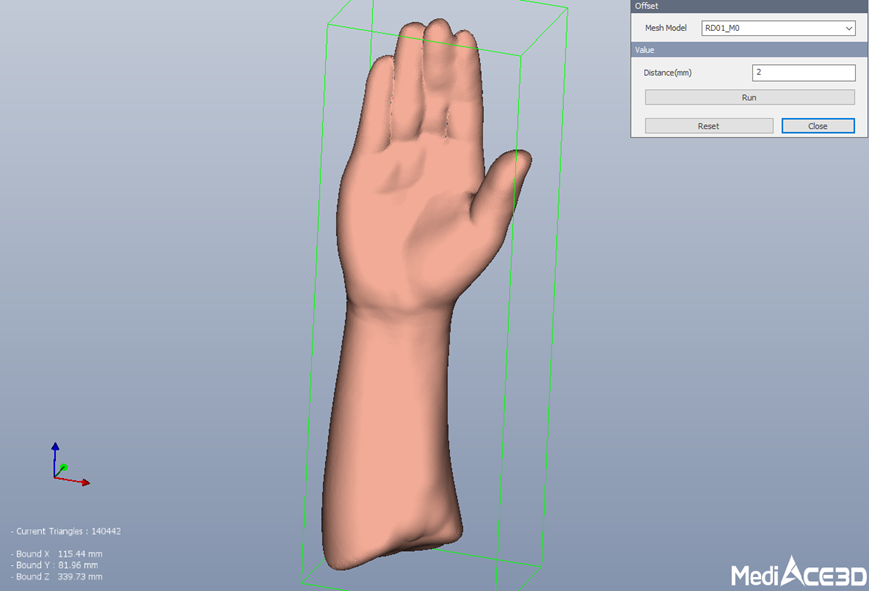

Enter the distance value to offset of the selected mesh.
Negative values are offset inward
Positive values are offset outward
Caution: Note that if the distance value is too large, the model will be severely deformed.

3

Copy Model

3. Copy Model
When creating a new offset model, check the Copy Model option.

4

Copy Curve

4. Copy Curve
Check whether to copy curves included in the selected model.

5

Run

Proceed operation.

6

Reset

Return mesh model to pre-operation state. (Undo)
