Transform

User can move and rotate the mesh model based on local coordinate system.
Prepare a mesh model for the orthosis design.

Transform

1

Select Mesh Model

1. Select Mesh Model
  Select target mesh model.

2

Move/Rotate

Click the ’Start’ button to start to move/rotate the target mesh model.
The local axis system for a transform will appear.
User can transform a model by move the axis line or rotate the circle.
User can finish mesh model transition by clicking ‘End’ button.


Set the position of the scan model for the orthosis design.

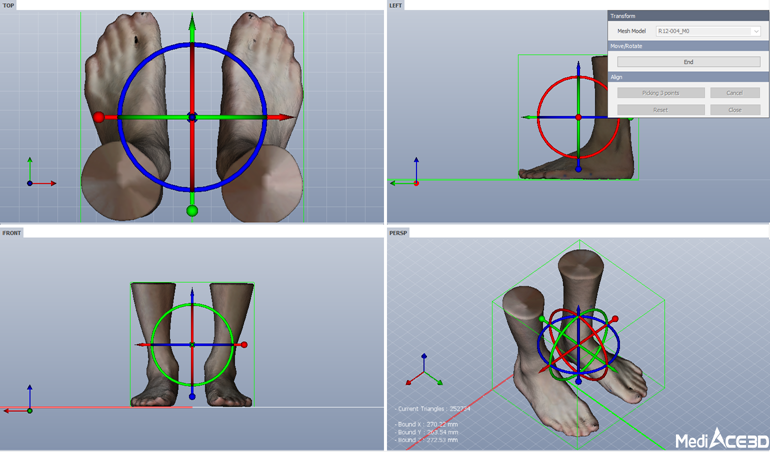

Display multiple viewport screens and move and rotate the scan model to set the appropriate position.

3

Align on X-Y Plane

3. Align on X-Y Plane

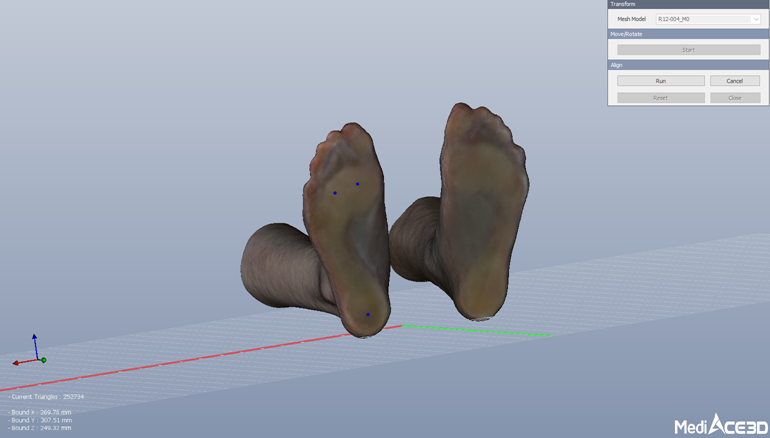

Click the ’Picking 3 points’ button to align on the XY-plane the target mesh model.
Click the ‘Run’ button to finish model alignment or click the :Cancel" button to cancel the operation.

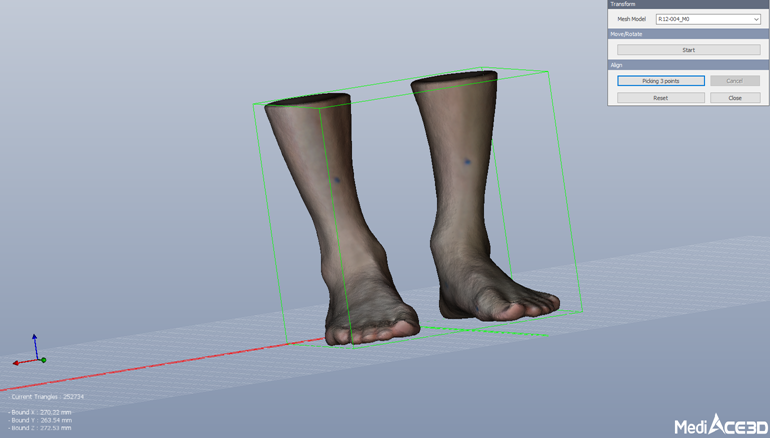

Align the model plane made of 3 points on the XY-plane.
The Y-axis direction is determined from the first point to the second point.


4

Reset

Return mesh model to pre-operation state.
