Hand Skeleton

Generate skeleton that fit to mesh model.

The Skeleton feature is only available on hand models.

Mesh Model

Select a target mesh model.

Select whether the target mesh model is left or right foot.

Skeleton generated foot models automatically recognize left and right feet.

Click the ‘Set’ button. Refer to the guide image and take 8 points on the mesh model to define skeleton.

• The images below show the name and location of the point.

A		E

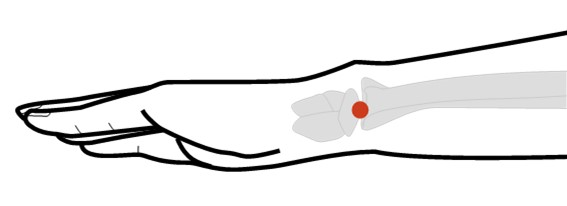

	Dorsal point between lunate and capitate		Later epicondyle under
B		F

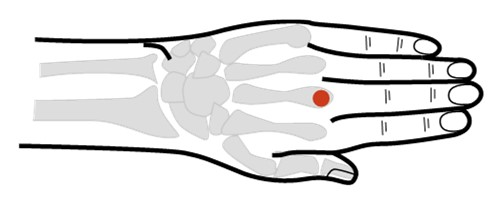

	3rd metacarpophalangeal joint dorsal center		Medial epicondyle under
C		G

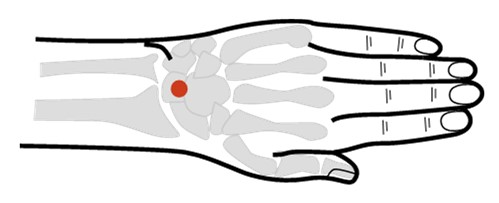

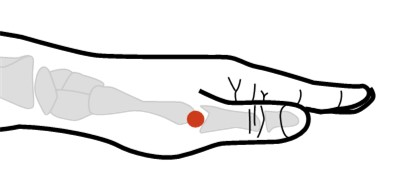

	Medial scaphoid center		1st metacarpophalangeal joint center
D		H
	Lateral lunate center		1st interphalangeal joint center

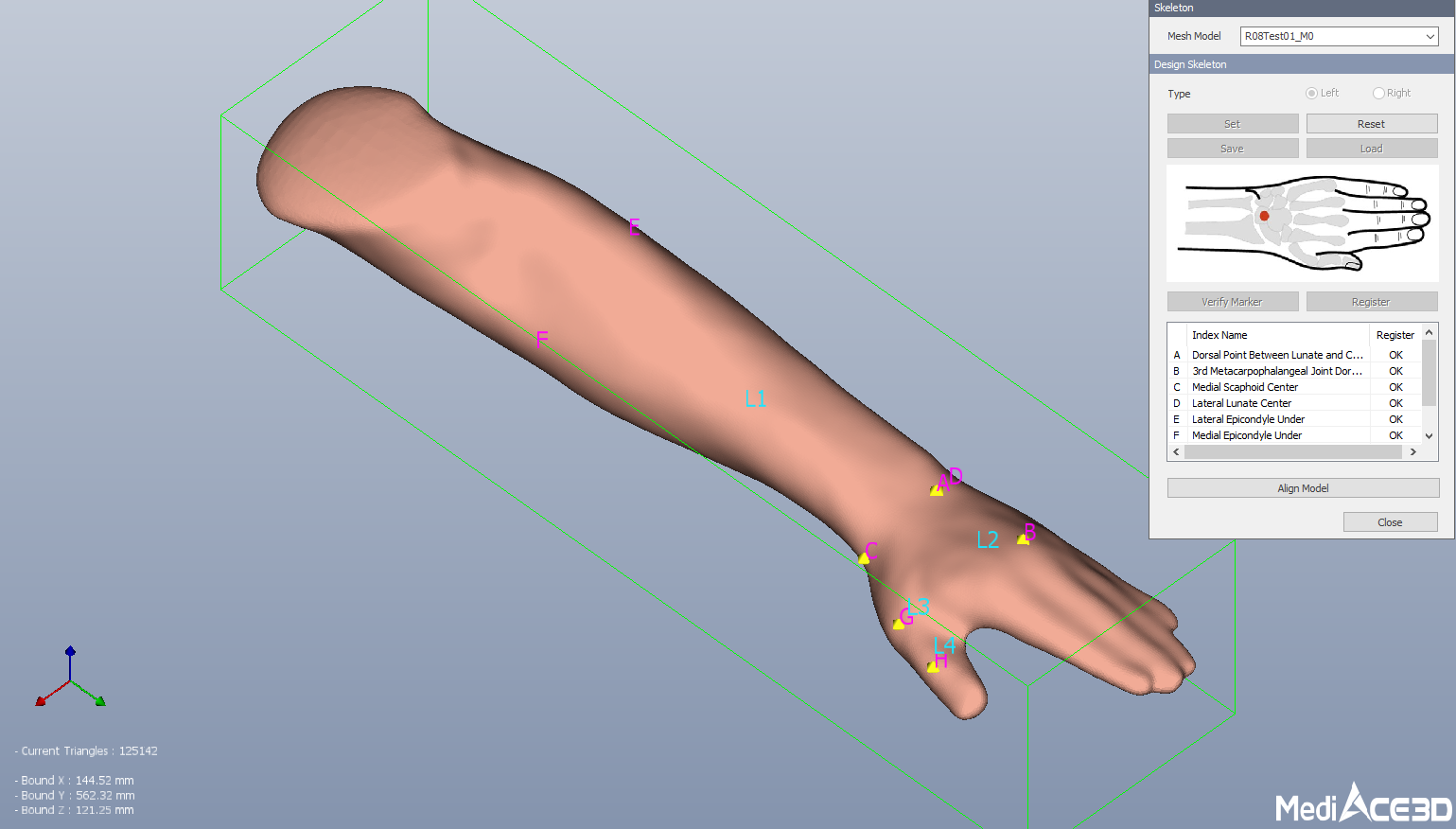

Once the skeleton has been created, check the state of the skeleton axis in transparent mode.

To modify the reference point of the saved skeleton, move the reference point by clicking the left mouse button and modify it.

When moved, it is converted to edit mode and the Save button is activated.

Cancel the existing reference points with Reset and set the reference point again with Set.

Create and save a skeleton using the reference points specified on the target mesh model.

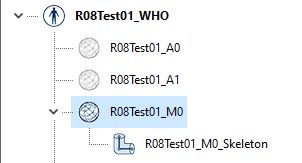

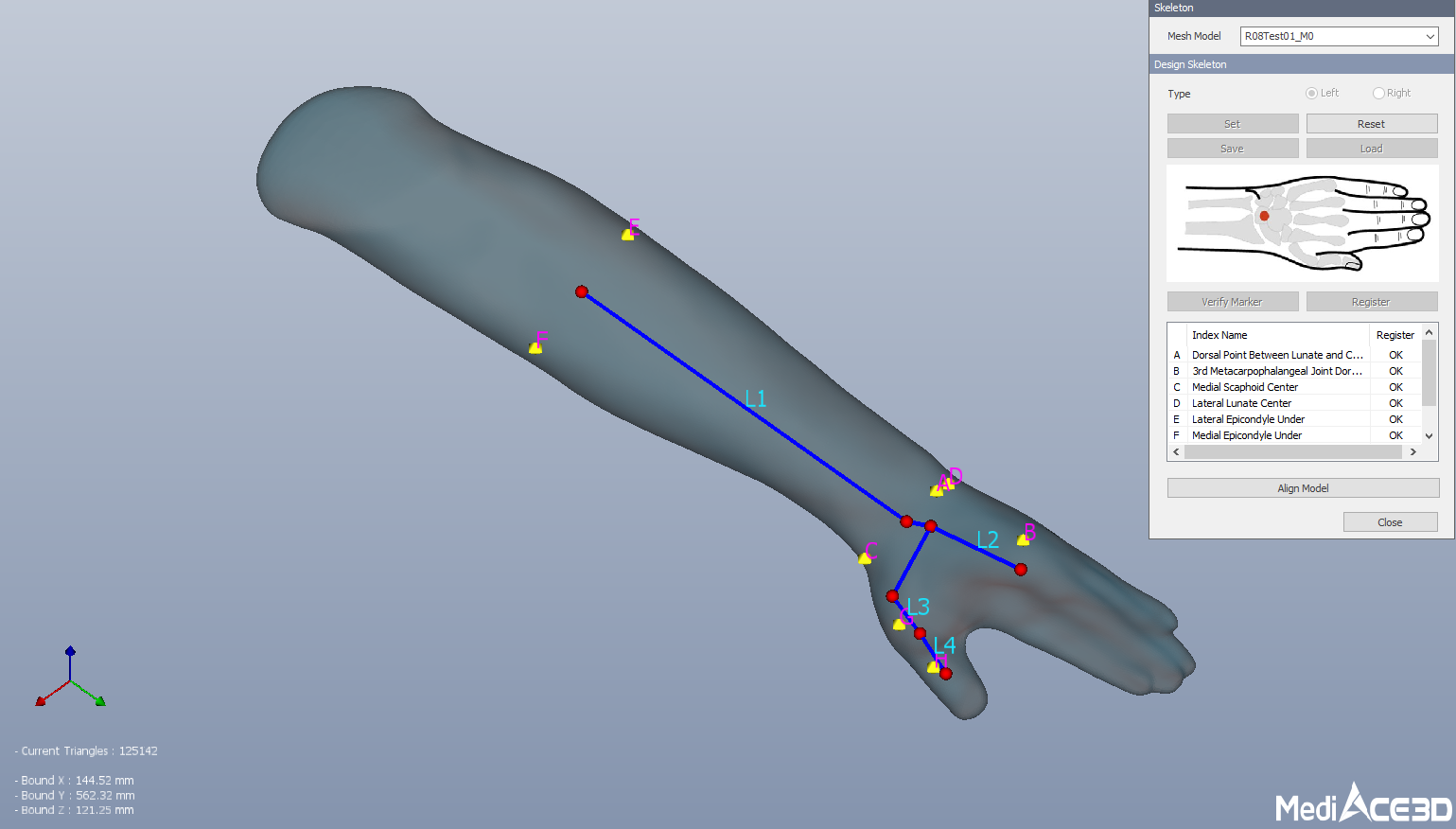

The below image shows the mesh model with skeleton and reference points.

Hand model is automatically aligned on the XY plane by the skeleton axis.
