Heel Height

To thicken the heel height of the insole, ACESOLE3D adjusts the heel height based on the bottom of the foot in the corrective foot model.

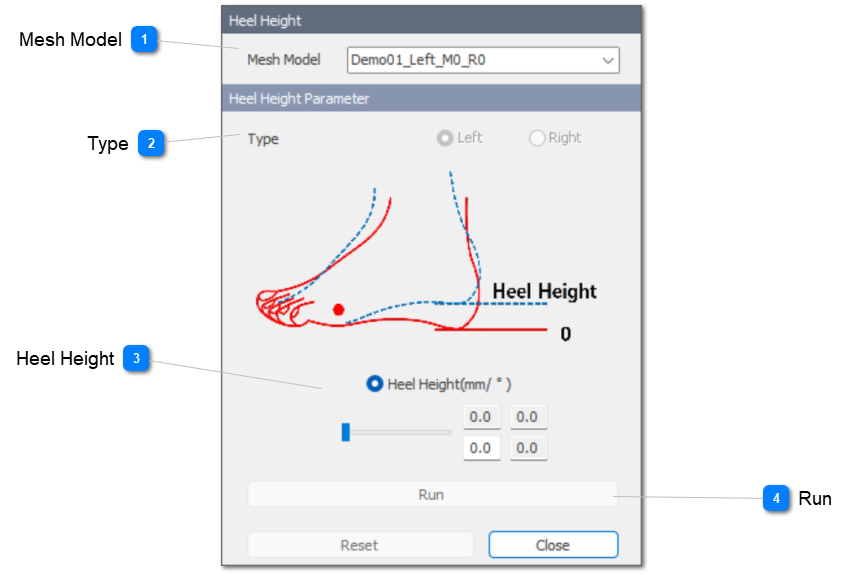

Heel Height

1

Mesh Model

1. Mesh Model

Select the target mesh model.


2

Type

2. Type
Display whether the target mesh model is left or right foot.
It is automatically selected by the skeleton information.

3

Heel Height

3. Heel Height

Adjust the slide bar to check the deformation caused by the heel height in real-time.
The heel height adjustment value is shown in height and angle.

The conversion values ​​of height and angle are shown differently depending on the foot length.



4

Run

Run to generate the Insole dummy model with heel height.
The Insole dummy model is created by adding subscripts such as _E0 to the selected model name and displayed in the project tree.

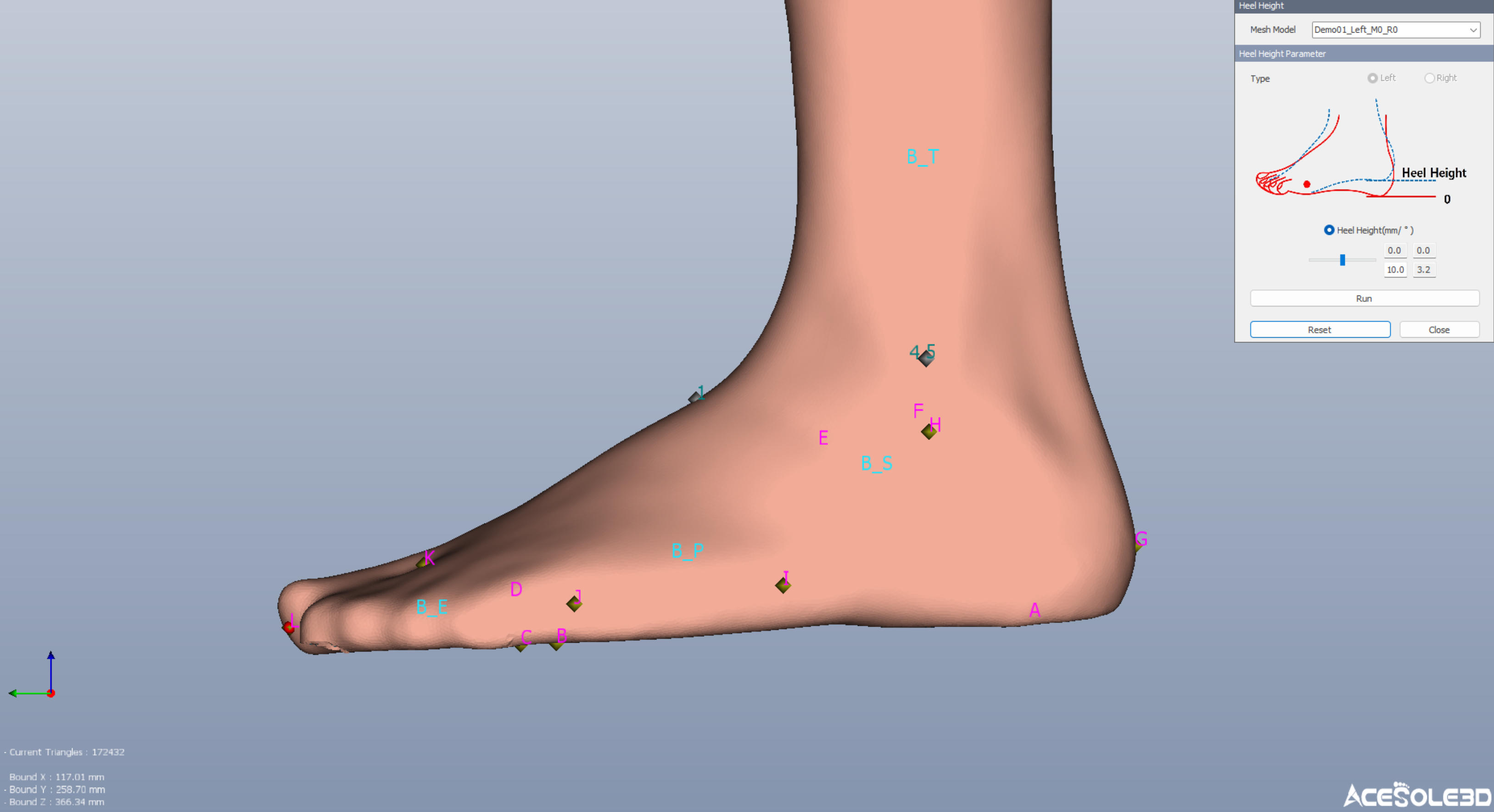

Before 0mm / 0 Drgree (Initial state)                              After 10mm / 3.2dgree
