Deform the foot arch height using the skeleton axis.
※ It does not proceed in the foot model deformed by foot posture correction.
※ It has to be operated with the original scan foot model.

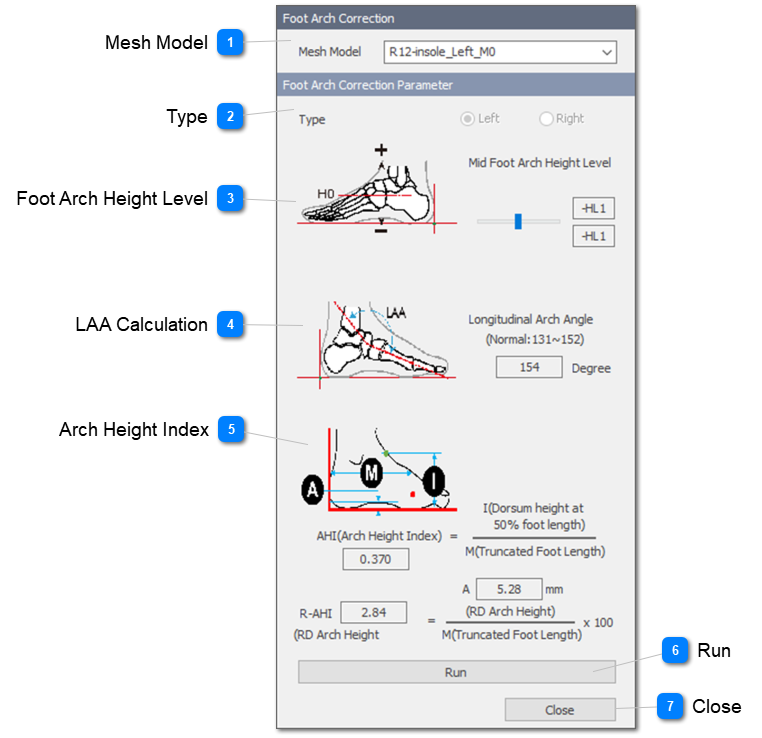

Mesh Model Select a target foot mesh model that has the skeleton.
Type Display whether the target mesh model is left or right foot.
It is automatically selected by the skeleton information.
Foot Arch Height Level

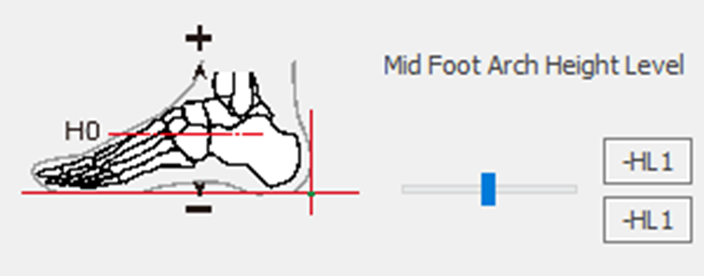

Adjust the level of the foot arch height.
HL0 is the recommended standard level, it is measured as the (-) level for low arches and the (+) level for high arches.
The arch height level cannot be lowered at the current measured level.
LAA Calculation
It shows the LAA calculation value according to the adjustment of the mid foot arch height level.
Arch Height Index It shows the arch height index value.
The arch height of the 3D scanned foot is shown using its own calculation algorithm.
An R-AHI of 3.0 to 3.6 is considered normal, an R-AHI of less than 3.0 is assumed to be a low arch and an R-AHI of 3.7 or more is assumed to be a high arch.
Run Apply the foot arch height level adjusted to the target mesh model.
The foot arch correction mesh model is generated as a copy model with suffix _R0, R01, etc..
Close Close the panel window.
