Foot Posture

Deform the foot joint angle using the skeleton axis.

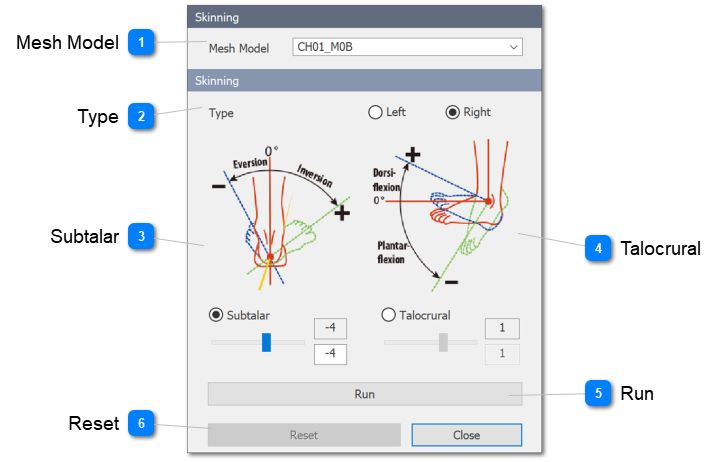

Foot Posture

1

Mesh Model

1. Mesh Model
Select a target foot mesh model that has the skeleton.

2

Type

2. Type
Display whether the target mesh model is left or right foot.
It is automatically selected by the skeleton information.

3

Subtalar

3. Subtalar
Subtalar controls inversion and eversion of the subtalar joint.
The value of the upper dimmed box displays the angle of the current scanned model. And user can input the angle for inversion/eversion into the lower box.
The range of input value to be applied can be adjusted from -20 degrees to +30 degrees from the current calculation value of the upper box.

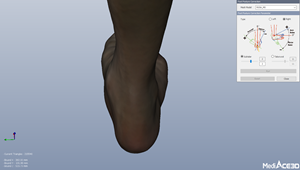

Current angle: 2                                                     Deformed angle: 12

4

Talocrural

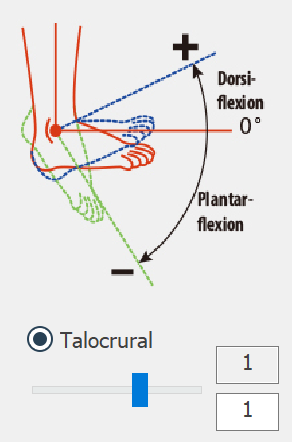

Talocrural controls dorsiflexion/plantarflexion of the talocrural joint.
The value of the upper dimmed box displays the angle of the current scanned model. And user can input the angle for dorsiflexion/plantarflexion into the lower box.
The range of input values to apply is between -35 degrees and 20 degrees.

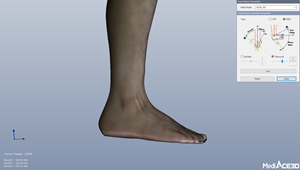

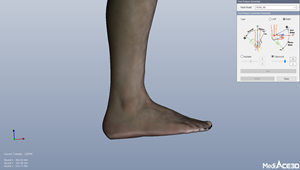

Current angle: 11                                                    Deformed angle: 1

5

Run

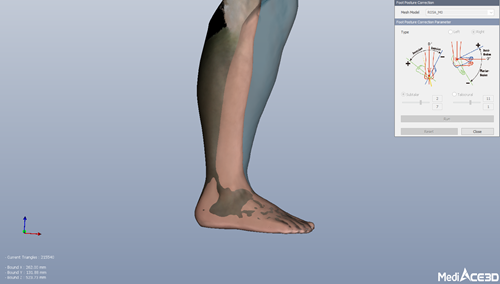

Apply the correction value entered on the Foot Posture panel to the target mesh model.
The skinning mesh model is generated as a copy model with suffix _R0, R01, etc..

※ Skinning mode allows calibration only one time
※ Foot model modified using the skinning function cannot be modified skinning value.
※ User can grnerate the foot skinning model with the perform skinning function again.


6

Reset

Return to the initial value of foot posture.
