Toe Rotate

A correction model in which the toes are rotated based on the metatarsal axis is created for a foot model with the toes' dorsiflexion or plantarflexion.

Toe Rotate

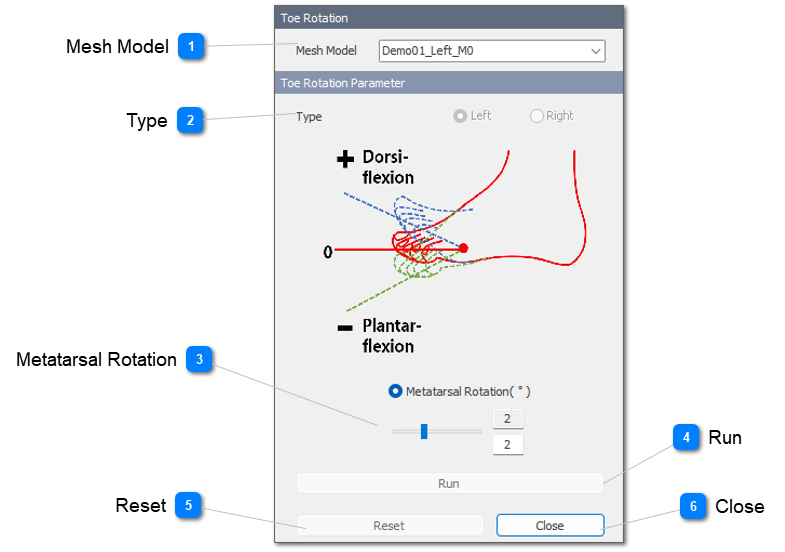

1

Mesh Model

1. Mesh Model
Select a target foot mesh model that has the skeleton.

2

Type

2. Type
Display whether the target mesh model is left or right foot.
It is automatically selected by the skeleton information.

3

Metatarsal Rotation

3. Metatarsal Rotation

Adjust the slide bar to check the deformation caused by the toes' rotation in real-time.

4

Run

Create the corrected foot model with the toe ratation deformed at the target mesh model.
The Insole dummy model is created by adding subscripts such as _R0, R1, etc to the selected model name and displayed in the project tree.

 Degree 0                                                                                Degree 15



5

Reset


Return mesh model to pre-operation state.

6

Close

Close the panel window.
