Measure

Measures the cumulative distance of two or more points in the selected mesh model.
It also measures the thickness of the selected point.

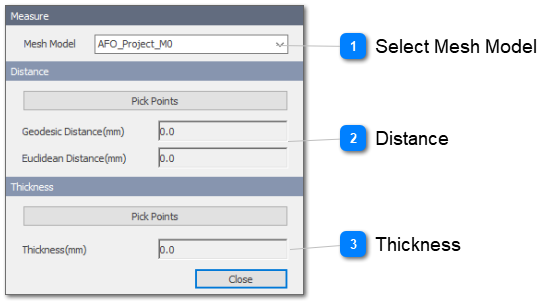

Measure

1

Select Mesh Model

1. Select Mesh Model

Select mesh model.

2

Distance

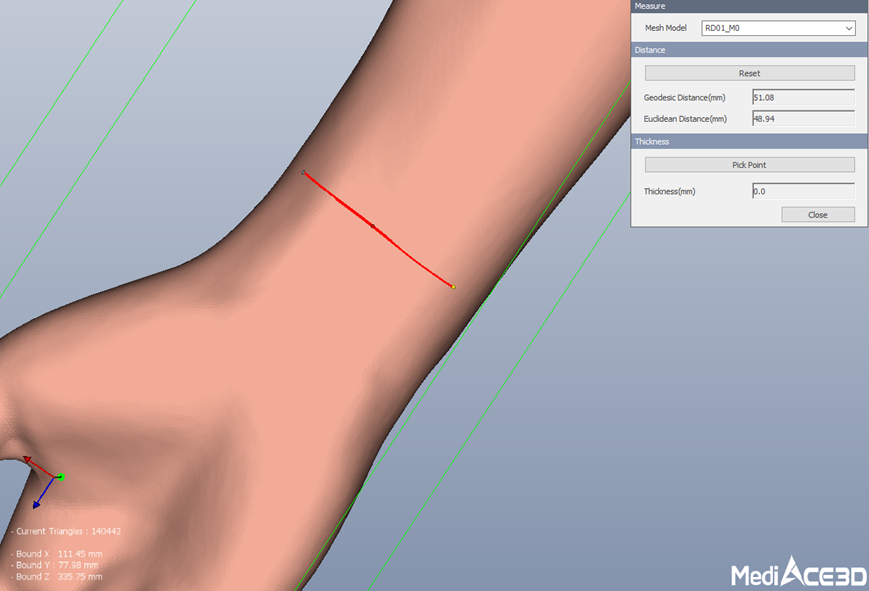

2. Distance





Measures the cumulative distance of two or more points in the selected mesh model.
The cumulative distance display when the user clicks two or more points on the mesh model.

Geodesic distance : Distance measured along curvature connecting points
Euclidean Distance : Distance measured along straight line connecting points


3

Thickness

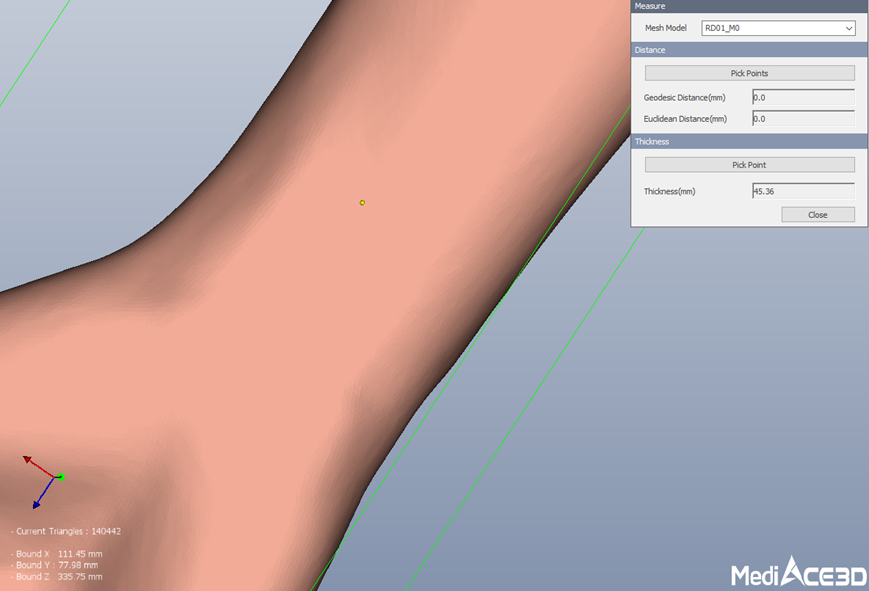

3. Thickness
Measures the thickness of the selected point
The thickness of the position clicked display when the user clicks a point on the mesh model.
The thickness of the selected point is shown as the normal direction distance between the meshes.
