Section

Display the cross-section on each axial plane of the model.

Section

1

Select Target Model

1. Select Target Model

Select target model.
Section outline is red color

2

Select Compare Model

2. Select Compare Model
Select compare model.
Section outline is black color

3

Section Position

3. Section Position



Select the axis plane to display the section of the model.
X-Y Plane
X-Z Plane
Y-Z Plane

4

Section Angle

4. Section Angle

Displays the section on the angular position of the axis of rotation of the axial plane.


5

Calculation Value

5. Calculation Value

Display the calculated values of the cross-section shape for target model only.
Calculate and display the maximum value of the horizontal axis, the maximum value of the vertical axis, and the circumferential length for the cross-sectional shape.

6

Reset

6. Reset
Return the operation mode to the initial state.

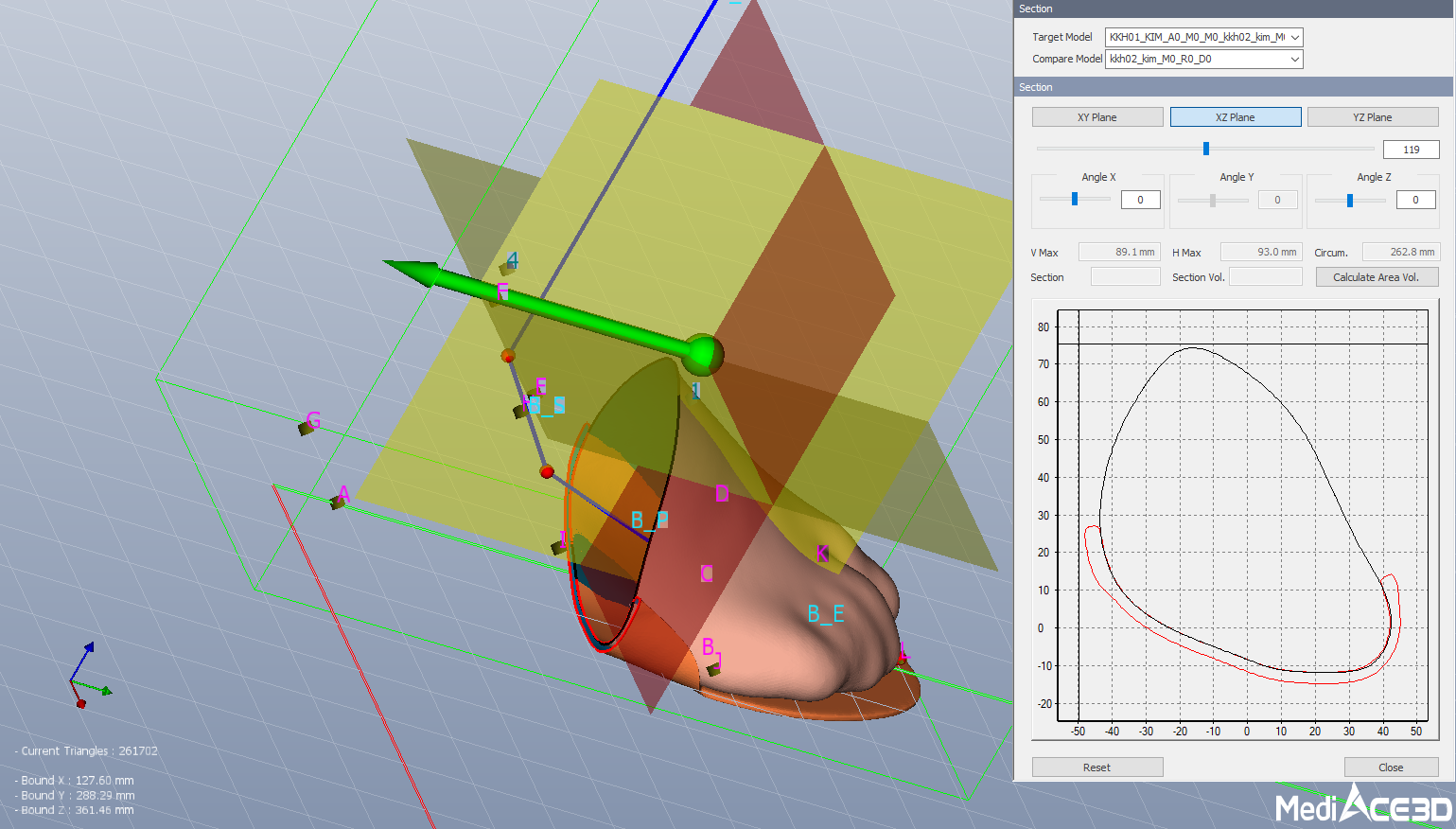

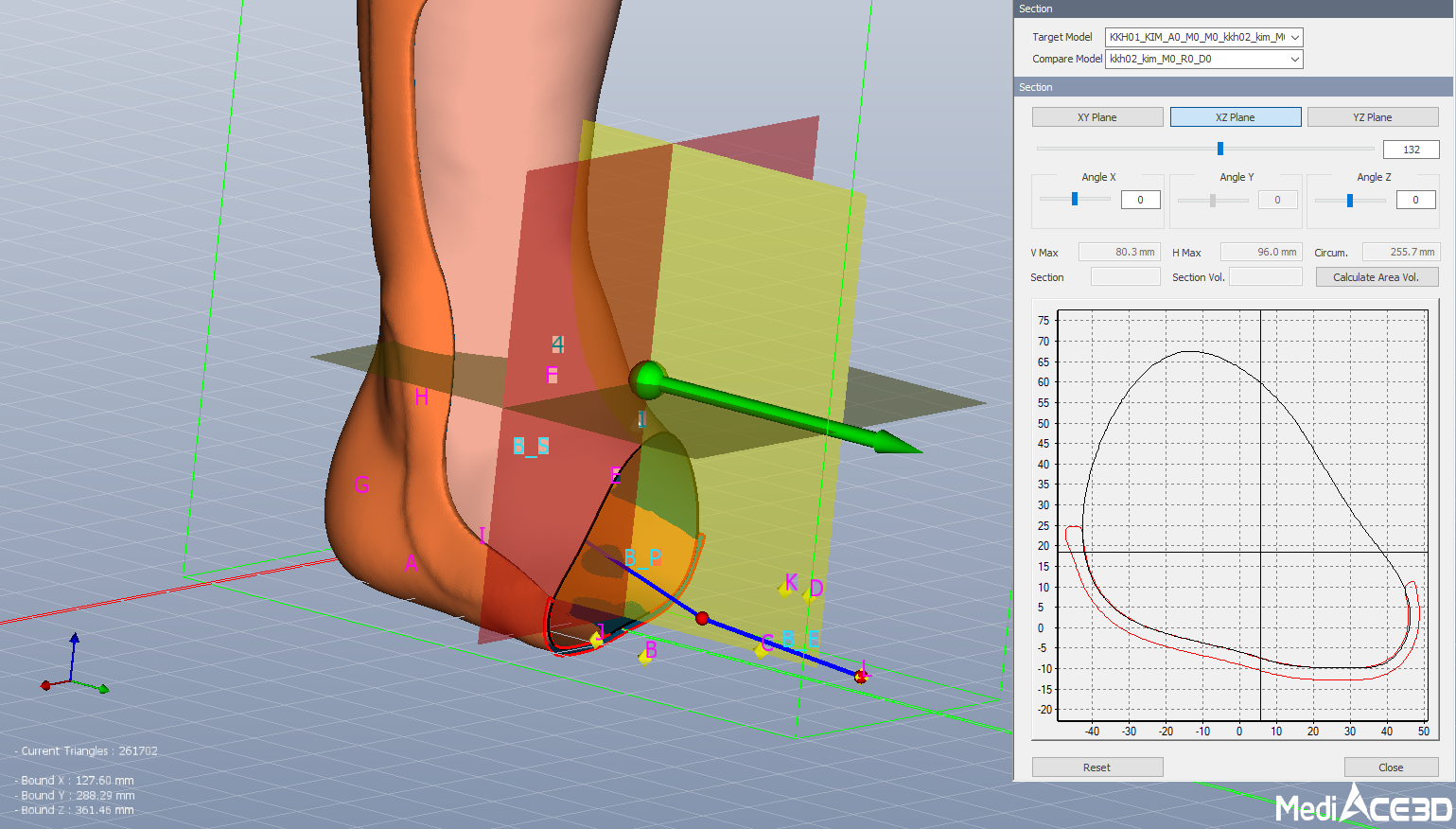

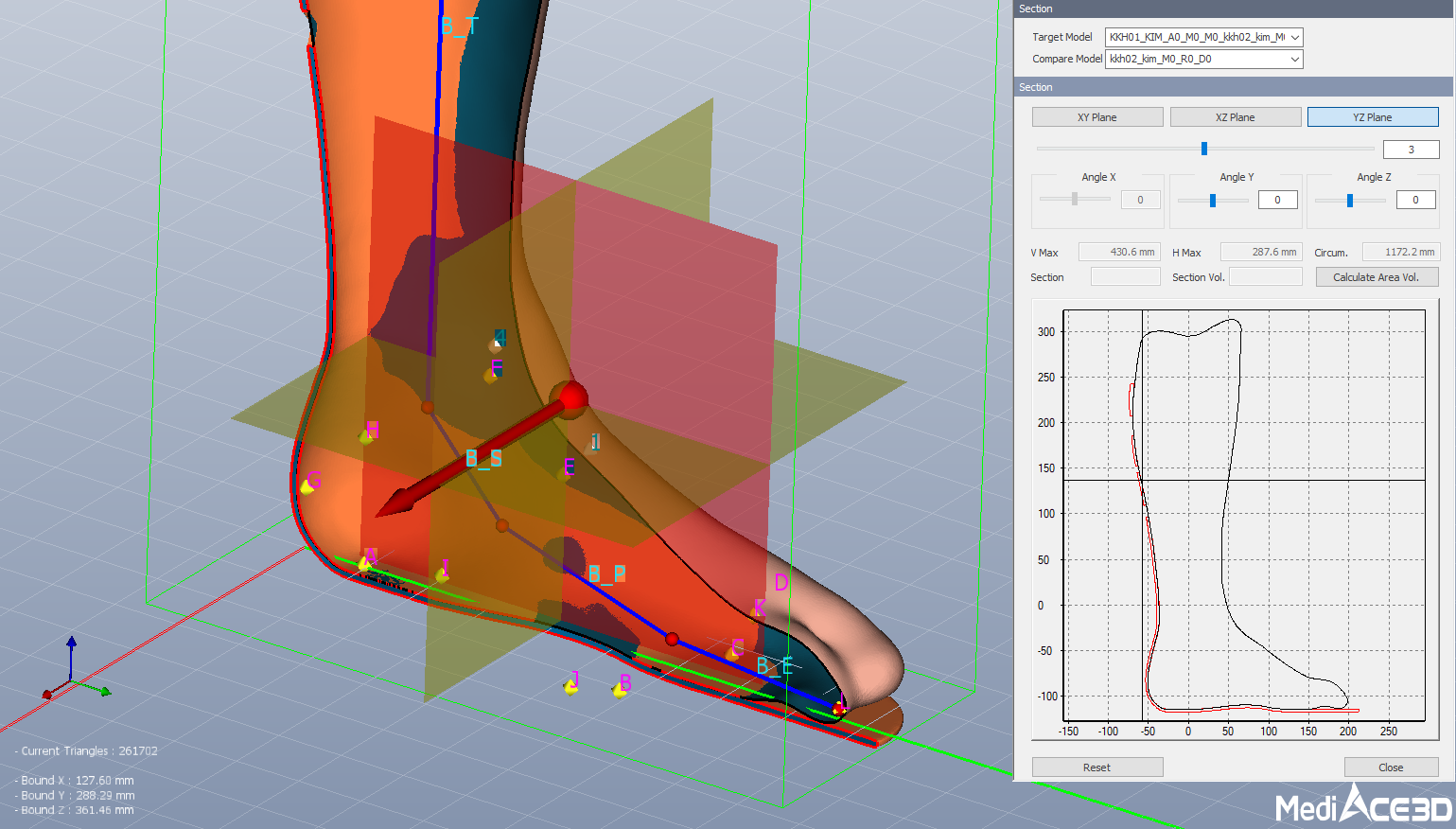

* Section View Operation

Current section view
Drag the arrow bar to reposition the section view
Click the arrow sphere to flip the section view
