Foot Data

Create a foot measurement & analysis report.
To generate a foot measurement & analysis report, a skeleton must be defined in advance

Foot Data

1

Skeleton Model

1. Skeleton Model

Select the target mesh model(Foot Model with Skeleton).

2

Report Language

2. Report Language
Select the language of the report output.
Only English and Korean are available.

3

Print

3. Print

Print the foot measurement & analysis report displayed on the screen to the printer.

This feature is not available under the demo license.

4

Export to Excel

4. Export to Excel

Save the foot measurement & analysis report displayed on the screen to Excel in raw data.
The excel file is automatically named and saved in the working project folder.

This feature is not available under the demo license.


5

Personal Info

5. Personal Info

Enter the personal information of the measurer before printing the foot measurement & analysis report.

This feature is not available under the demo license.

6

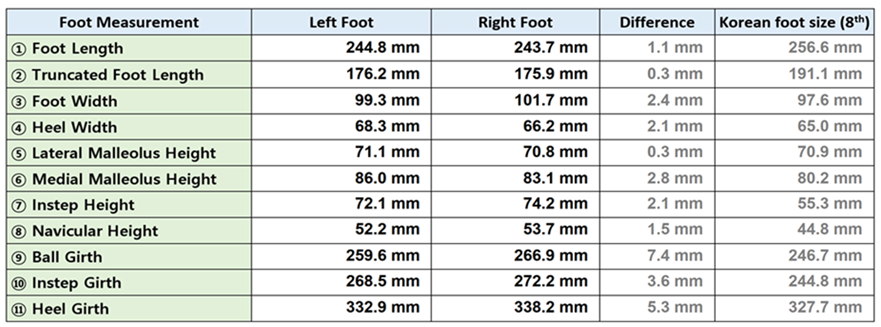

Foot Measure

6. Foot Measure

The foot measurement data is calculated in mm units and the results are displayed.
7

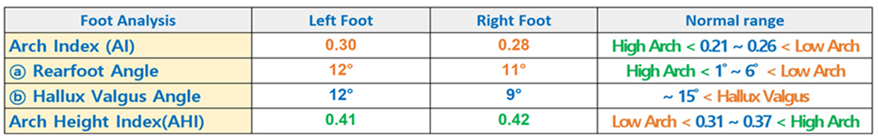

Foot Analysis

7. Foot Analysis
The foot analysis data is calculated and the results are displayed.
