FPI-6

Create a foot posture Index (FPI-6) report.
To generate a foot measurement & analysis report, a skeleton must be defined in advance

FPI-6

1

Skeleton Model

1. Skeleton Model

Select the target mesh model(Foot Model with Skeleton).


2

Print

2. Print

Print the foot measurement & analysis report displayed on the screen to the printer.

This feature is not available under the demo license.


3

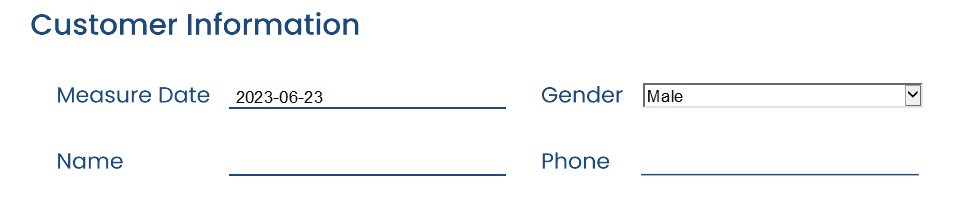

Personal Info

3. Personal Info

Enter the personal information of the measurer before printing the foot measurement & analysis report.

This feature is not available under the demo license.

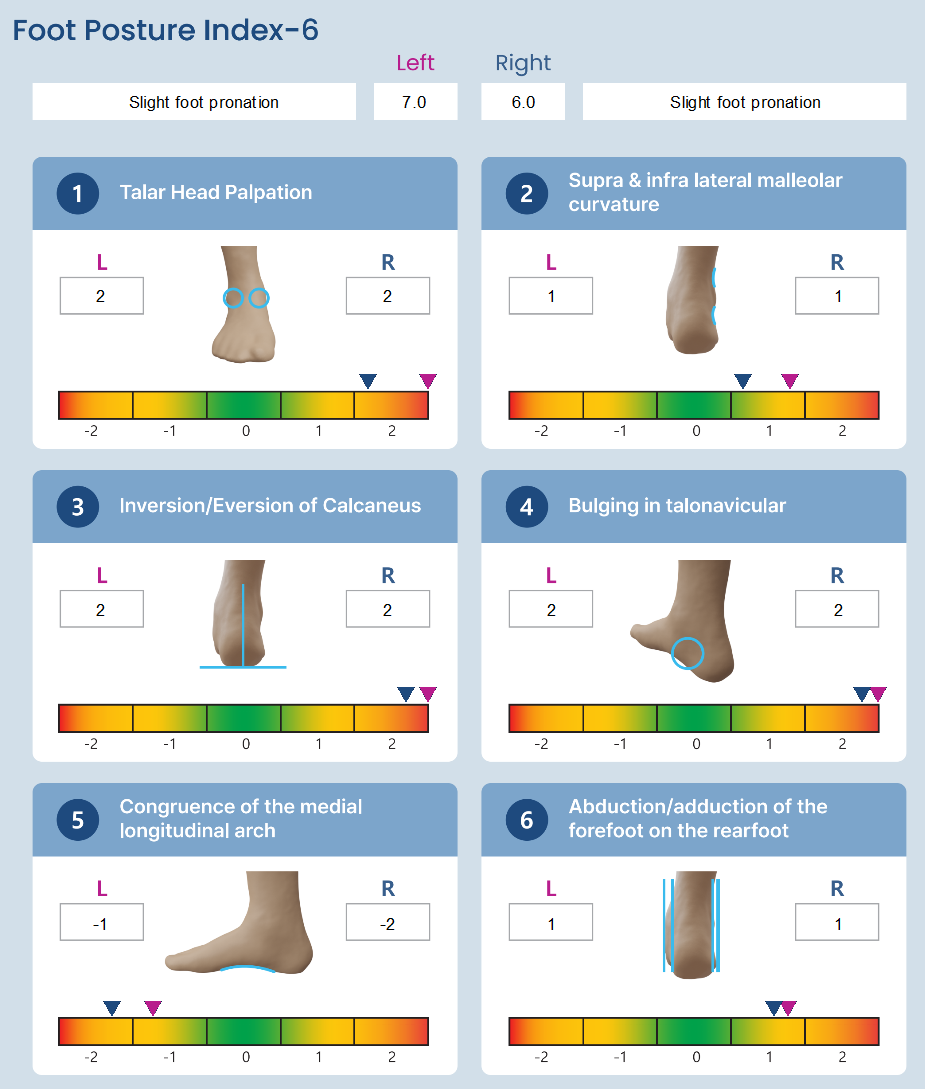

4

Foot Analysis

4. Foot Analysis

The foot analysis data is calculated and the results are displayed.
