Thickness

Deforms selected mesh model to a value of offset distance and thickness.

Thickness

1

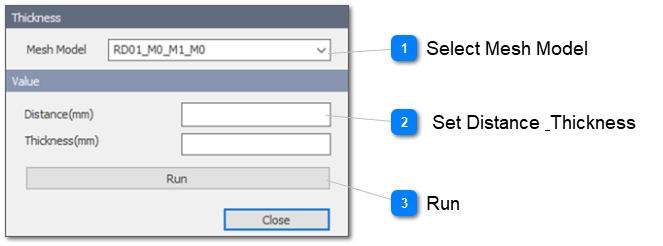

Select Mesh Model

1. Select Mesh Model

Select Mesh Model.

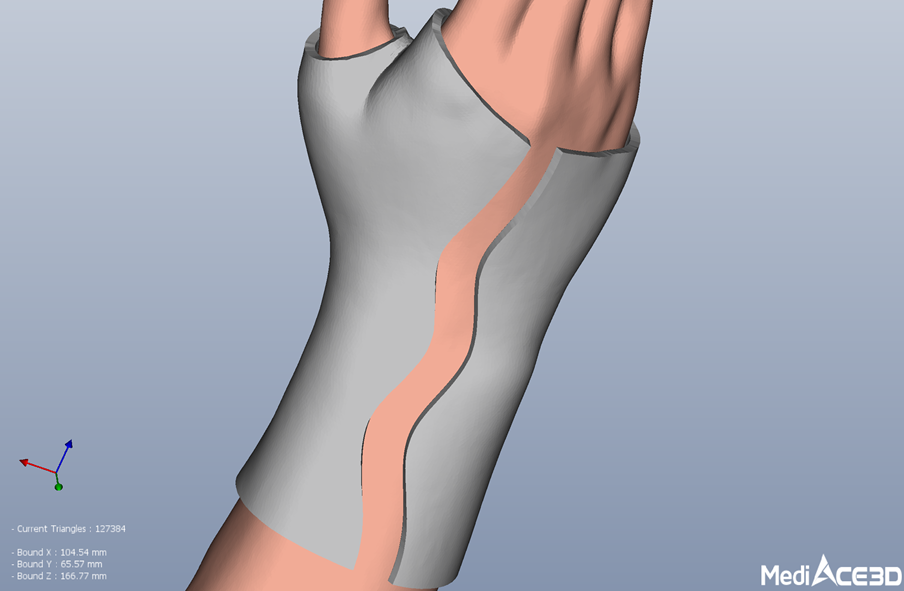

Create a thicken mesh model in the selected model.

2

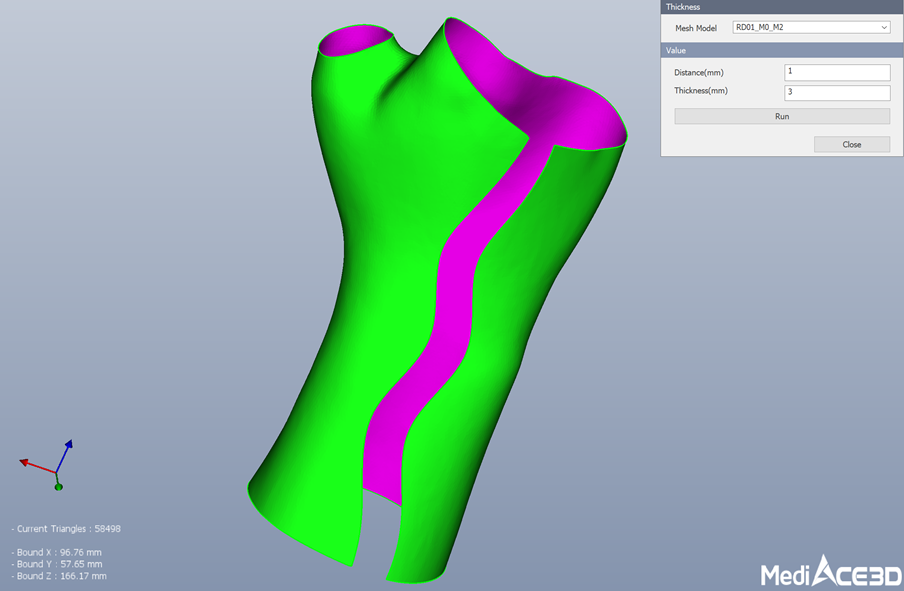

Set Distance & Thickness

2. Set Distance & Thickness

Distance: Enter the distance value to offset of the selected mesh model.
No value may be entered, no distance transformation is applied.
Negative values are offset inward
Positive values are offset outward
Caution: Note that if the distance value is too large, the model will be severely deformed.

Thickness: Enter the thickness value of the selected mesh model.

3

Run

Create a new mesh model by thickness model of the selected mesh model.

The thicken mesh model is created by adding subscripts such as _M0, _M1, etc. to the selected model name and displayed in the project tree.
