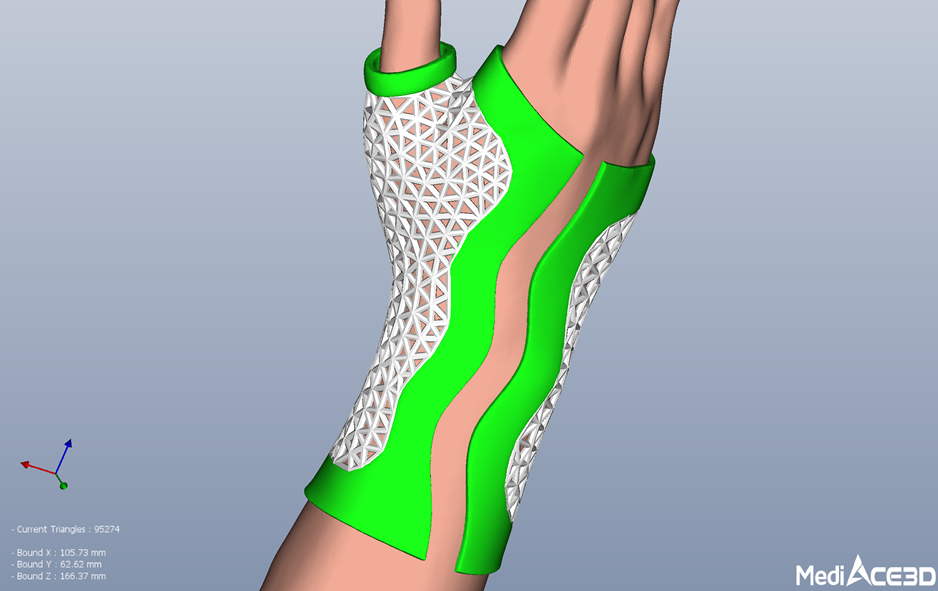

Various model construction functions such as trim, offset, thickness, reinforcement thickness, and lattice structure are performed at once in the model with the design curve.

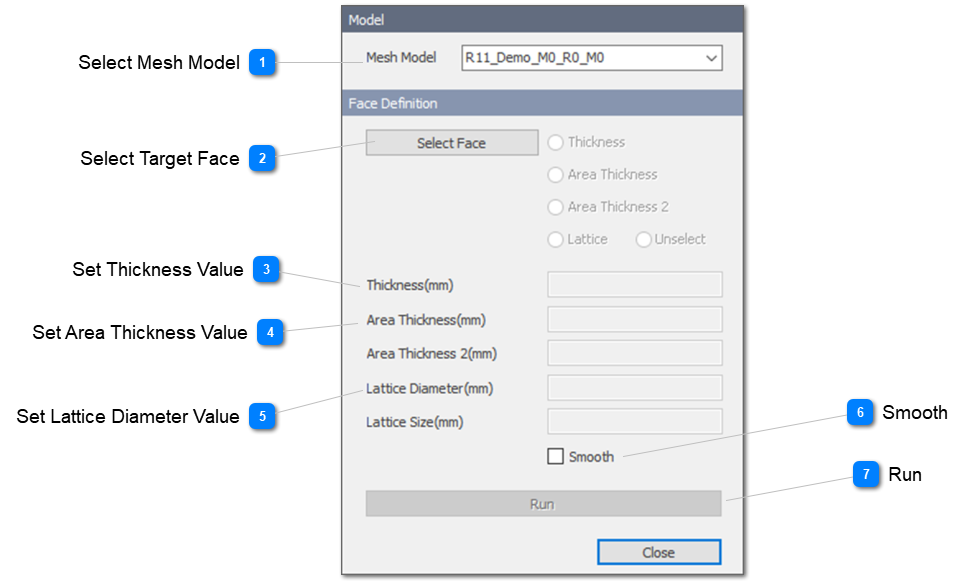

Select Mesh Model
Select the target mesh model.

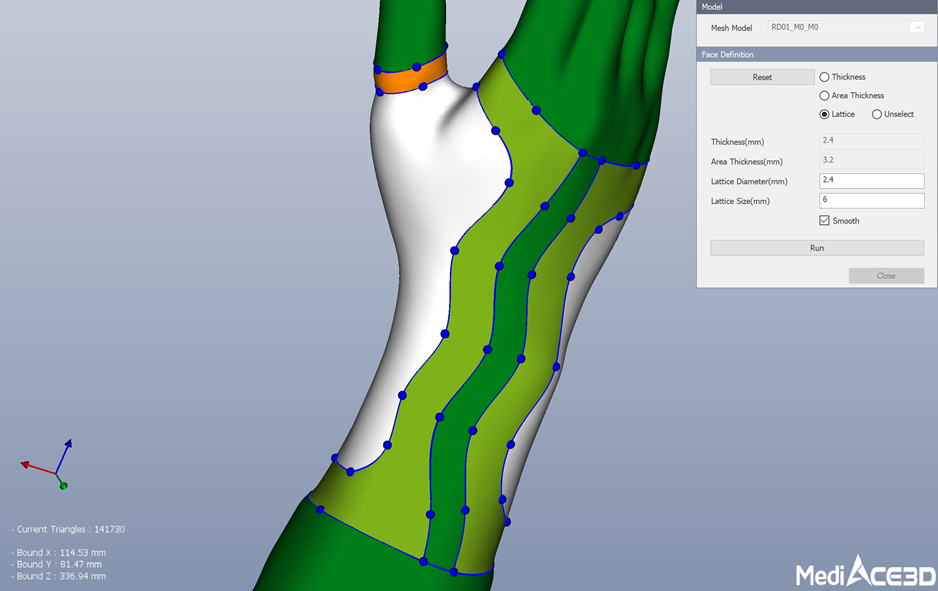

Create an orthosis model of the various structure in the selected model.
※Unselected faces are automatically trimmed and removed.
The selected area turns white color.

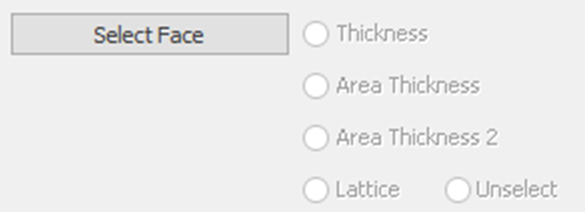

Thickness: Select the faces to create a default thickness area. The selected area turns green color.

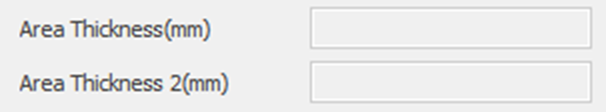

Area Thickness: Select the faces to create a reinforcement thickness area. The selected area turns orange color.
Lattice: Select the faces to create a lattice structure. The selected area turns white color.
Unselect: Select the faces to cancel from the selected faces.
Reset: Cancels the select face execution.
To run it again, you have to run the select face again.

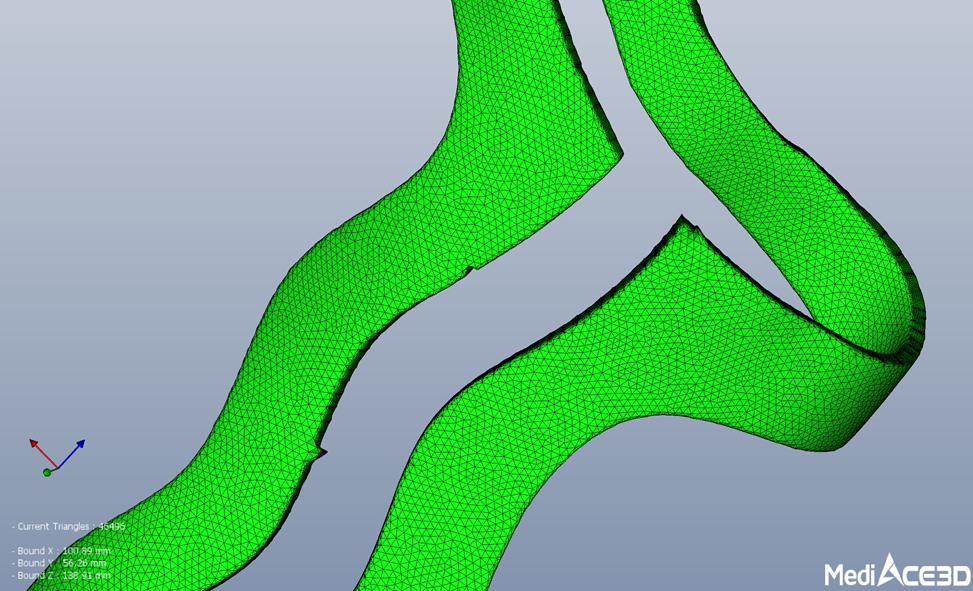

※The trim operation in the model function does not automatically re-mesh after trimming, so the trimmed edge may be uneven and occur a dimple or a spark.

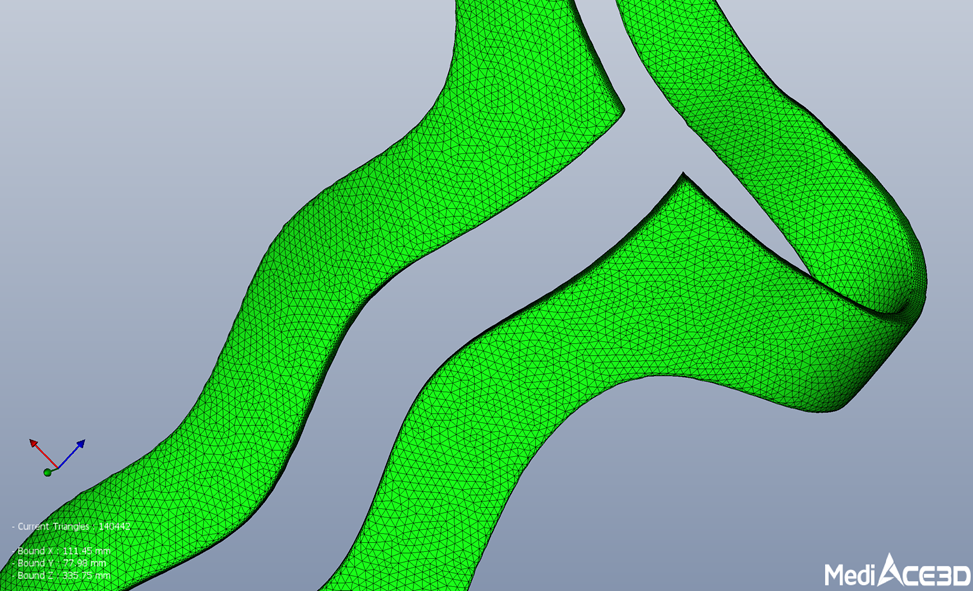

※ It is recommended to run Remesh and Smooth before creating a thickness model directly from an untrimmed scan model.

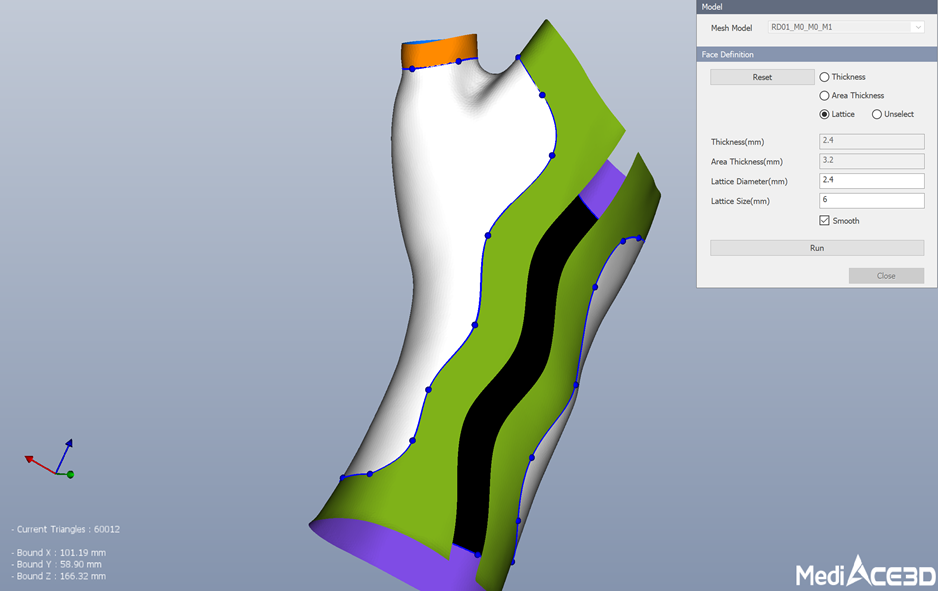

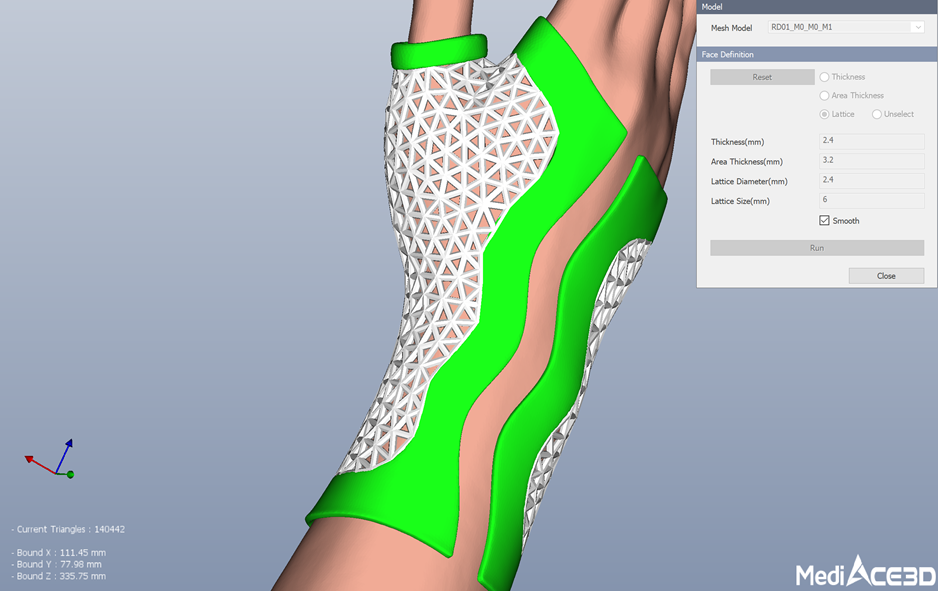

- Run model menu after curve design - Run model menu after execute Remesh and Smooth after curve design
