Lattice

Create a lattice shape in the selected face(s).
The lattice structure is an Octagonal section structure.

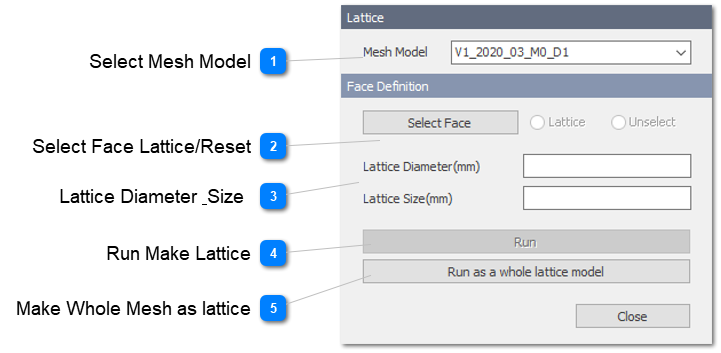

  Lattice

11. Select Mesh Model

Select the target mesh model.
Create a lattice structure model in the selected model.

2

Select Face Lattice/Reset

2. Select Face Lattice/Reset

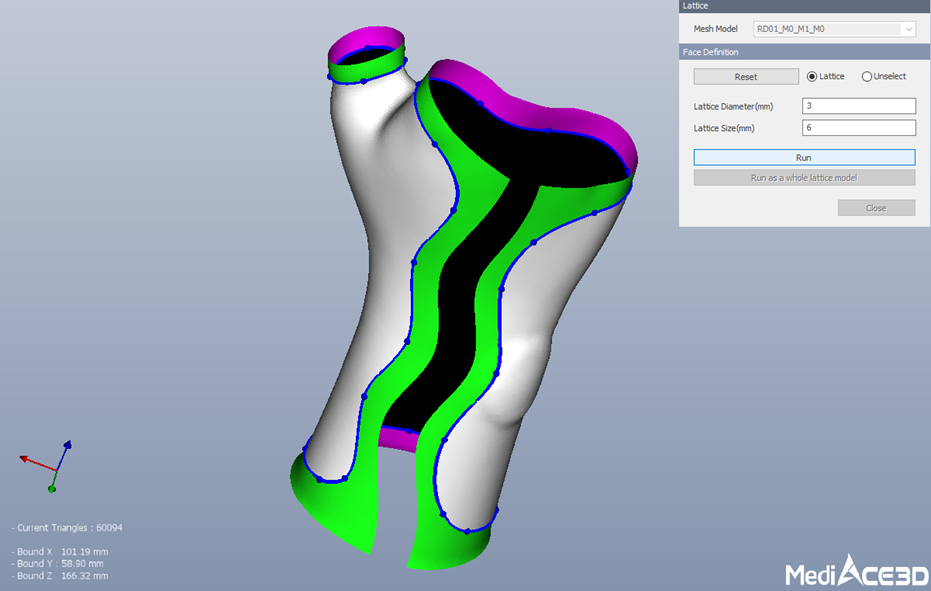

Select target face(s) or reset selection(s).
The selected area turns white.

Select Face (Lattice): Select the faces to create lattice structure.
Select Face (Unselect): Select the faces to cancel from the selected faces.

Reset:  Cancels the select face execution.
To run it again, you have to run the select face again.

3

Lattice Diameter & Size

3. Lattice Diameter & Size



Enter the circumscribed circle diameter and the size of lattice structure.
Lattice size defines the size of the space between lattices.

※ The face that is not selected as the lattice face automatically creates the same thickness as the lattice diameter.
※ The value should be less than 100% of Thickness value.
※ The lattice size is recommended to be 2 to 2.5 times of the lattice diameter.
※ Too small lattice size produces a dense lattice structure, while a too-large lattice size may not produce a normal surface geometry.
※ Particularly, the lattice size of the area with small curvature such as fingers should be set to 6 or less, in case of adult, regardless of the lattice diameter

4

Run Make Lattice

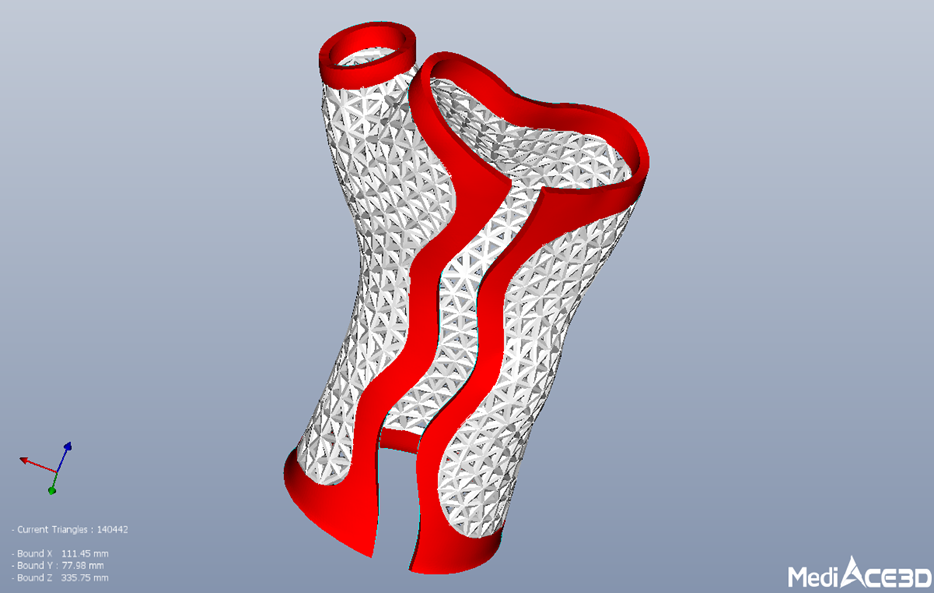

  Create a new mesh model with a lattice structure for the selected faces.

The lattice mesh model is created by adding subscripts such as _L0, _L1, etc. to the selected model name and displayed in the project tree.



5

Make Whole Mesh as lattice

  Create a new mesh model with a lattice structure an entire model without the operation of the select face.


※ Don't operate Refine functions as to simplification, smooth, remesh and etc. with mesh model created by Lattice mesh algorithm
