Trim

Cut face with closed curve that created with Draw function.

Mesh Model

Select the target mesh model.

Create a trimmed model in the selected model.

Select target face(s) or reset selection(s).

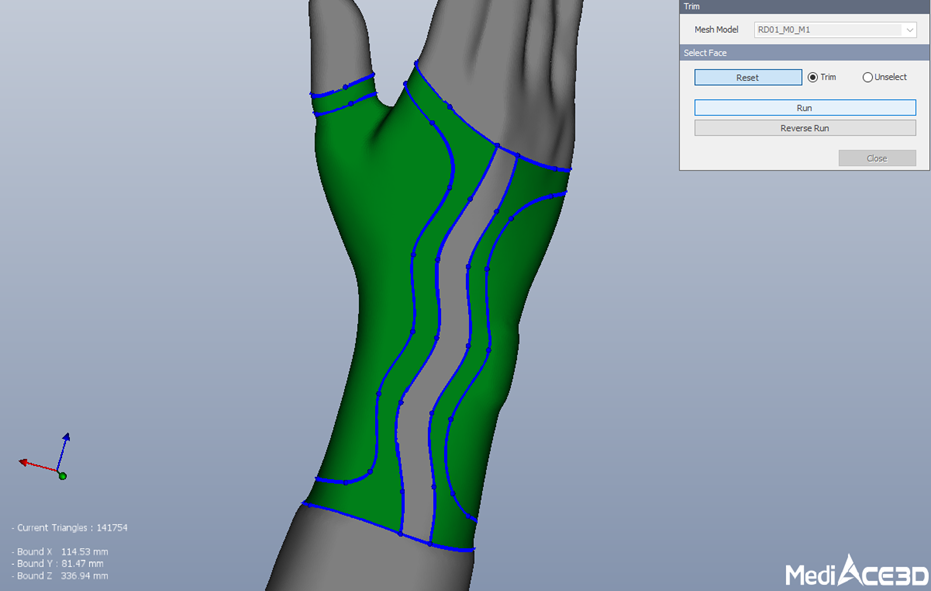

The selected area turns grey.

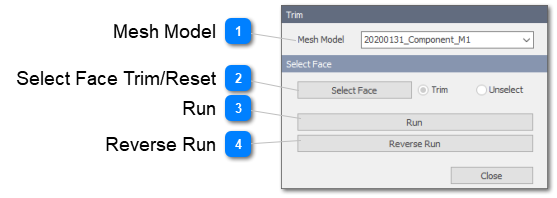

Select Face (Trim): Select the faces to trim.

Select Face (Unselect): Select the faces to cancel from the selected faces.

Reset: Cancels the select face execution.

To run it again, you have to run the select face again.

Cut the selected face and create a new mesh model of the remaining faces.

The curves from the original model are copied to the trimmed model except the trim edge curves.

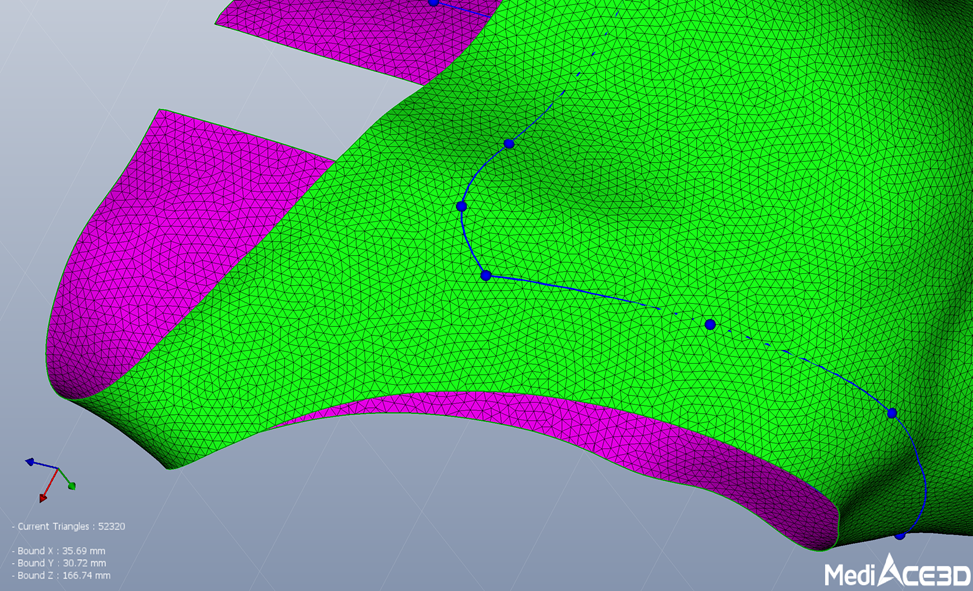

※ The trim operation does automatically re-mesh to arrange a trimmed edge after trimming.

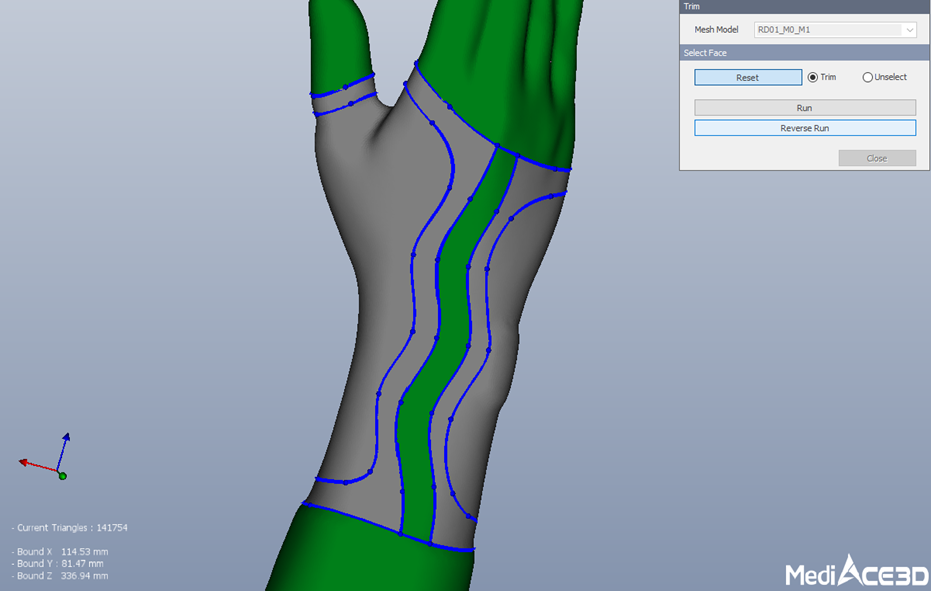

Creates a new mesh model of faces cut from the selected face.

The curves from the original model are copied to the trimmed model except the trim edge curves.

※ The trim operation does automatically re-mesh to arrange a trimmed edge after trimming.

The trimmed mesh model is created by adding subscripts such as _M0, _M1, etc. to the selected model name and displayed in the project tree.
