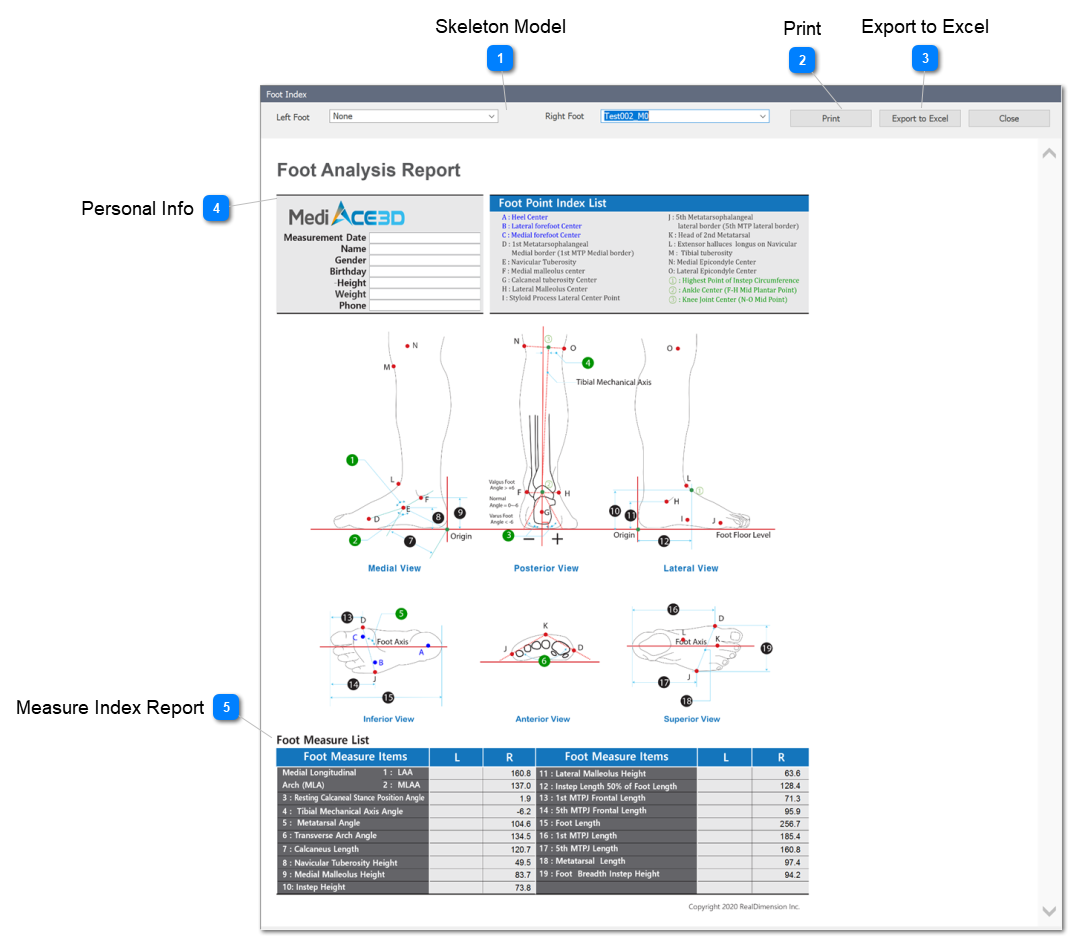

Create a foot measurement index report.
To generate a foot measurement index report, a skeleton must be defined in advance
 Skeleton Model
Select the target mesh model(Foot Model with Skeleton).
|
|
 Print
Print the foot measurement index report displayed on the screen to the printer.
This feature is not available under the demo license.
|
|
 Export to Excel
Save the foot measurement index report displayed on the screen to Excel in raw data.
The excel file is automatically named and saved in the working project folder.
This feature is not available under the demo license.
|
|
 Personal Info
Enter the personal information of the measurer before printing the foot measurement index report.
This feature is not available under the demo license.
|
|
 Measure Index Report
The foot measurement index report is calculated in mm units and the results are displayed.
|
|
